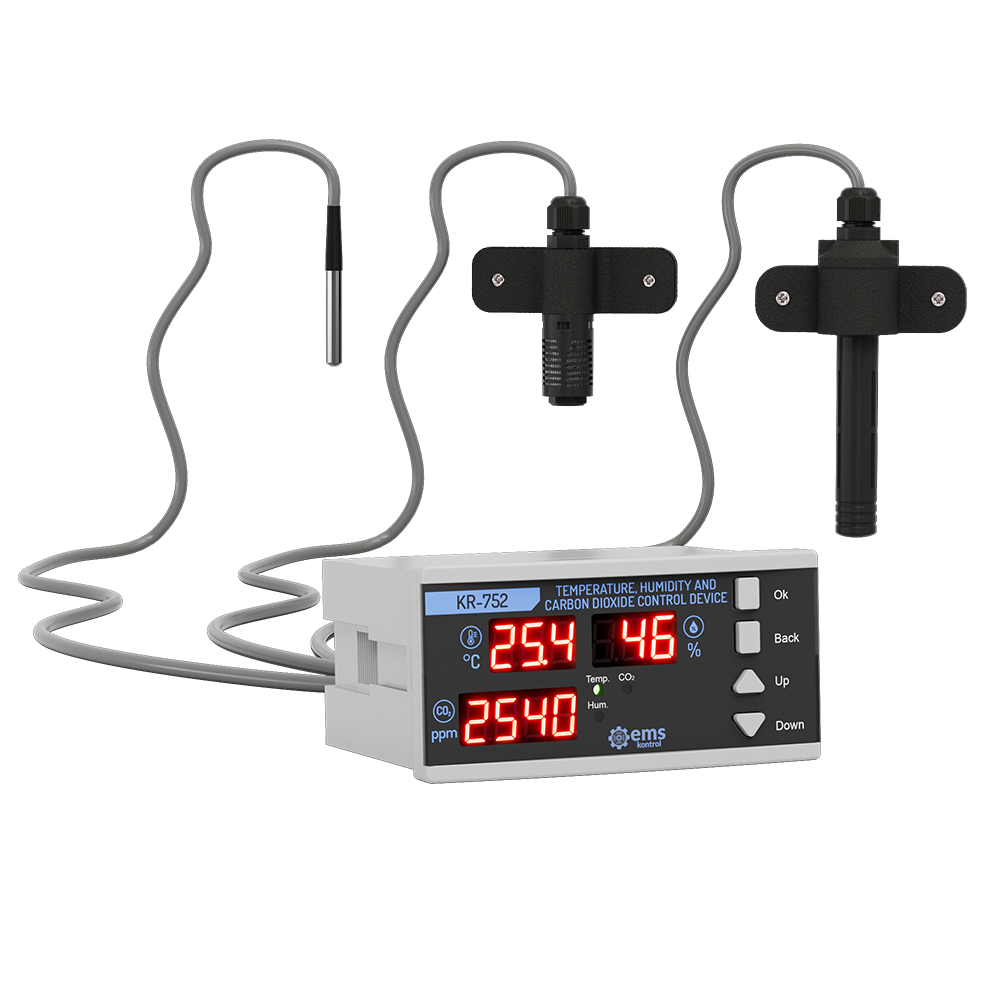

KR-752 PANEL TYPE TEMPERATURE, HUMIDITY AND CARBON DIOXIDE CONTROL DEVICE
Panel Mounted Control DevicePanel type temperature, humidity and carbon dioxide control device allows you to control your temperature, humidity and carbon dioxide devices in the desired value range by precisely measuring temperature, relative humidity and carbon dioxide values.
- Accurate and Precise Measuring
- 3 Relay Outputs
- Durable and Handy Design
- Long Operating Life
- Cleanable Filter
- Panel Type Mounting
- Adjustable Relay Sensitivity
| Product Informations | |
|---|---|
| Product Name | KR-752 Panel Type Temperature, Humidity and Carbon Dioxide Control Device |
| Input | 220 V AC |
| Output | Relay (3*5A) |
| Sensor | Temperature | Humidity | Carbon Dioxide |
|---|---|---|---|
| Measuring Range | -40…+80 °C | 0-100 % RH | 0 – 10.000 ppm |
| Sensitivity | ± 0,1 °C | ± 1 % RH | ± 10 ppm |
| Accuracy | ± 0,3 °C | ± 3 % RH | ± 50 ppm + %2 |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 93 mm | 96 mm | 48 mm | 81,5 mm | 92,5 mm | 44,25 mm |
