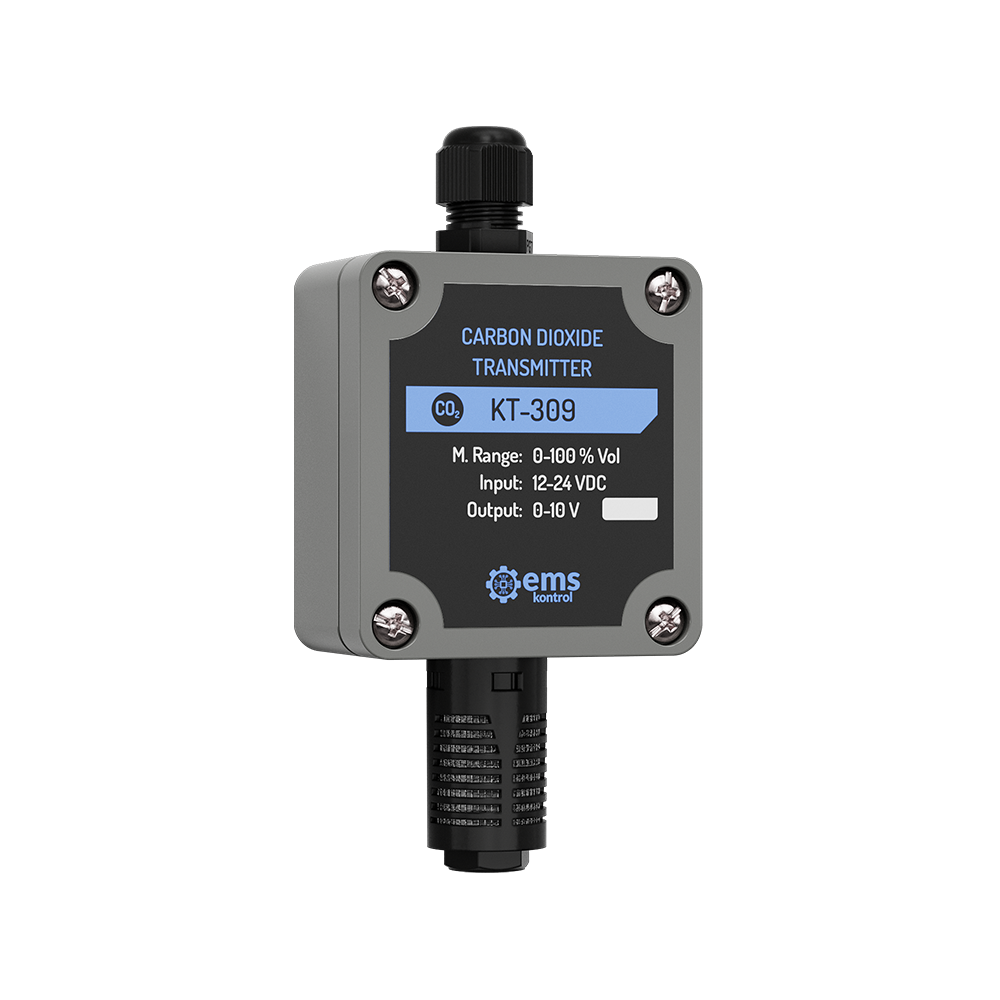

KT-3X9 CARBON DIOXIDE TRANSMITTER
Carbon Dioxide SensorsIt precisely measures the carbon dioxide value in the environment and convert it into output signals in desired standards (0-10V, 4-20mA, Modbus RTU).
- Accurate and Precise Measuring
- Analog Output
- Durable and Handy Design
- Long Operating Life
- Cleanable Filter
- Easy Assembling
- IP 67 Plastic Case (Not Including Sensor)
| Product Informations | |
|---|---|
| Product Name | KT-3X9 Carbon Dioxide (CO₂)Transmitter |
| Input | 12-24 V DC |
| Output | 0-10 V / 4-20 mA / Modbus RTU |
| Product Code | Output Signal |
|---|---|
| KT-309 | 0-10 V |
| KT-349 | 4-20 mA |
| KT-369 | Modbus RTU |
| Sensor | Measuring Range | Sensitivity | Accuracy |
|---|---|---|---|
| Carbon Dioxide | 0 – 100 % Vol | ± 0.2 % Vol | ± 0.5 % Vol |
| Model Product Codes | |||||
|---|---|---|---|---|---|
| 3X9-2 | 3X9-3 | 3X9-9 | |||

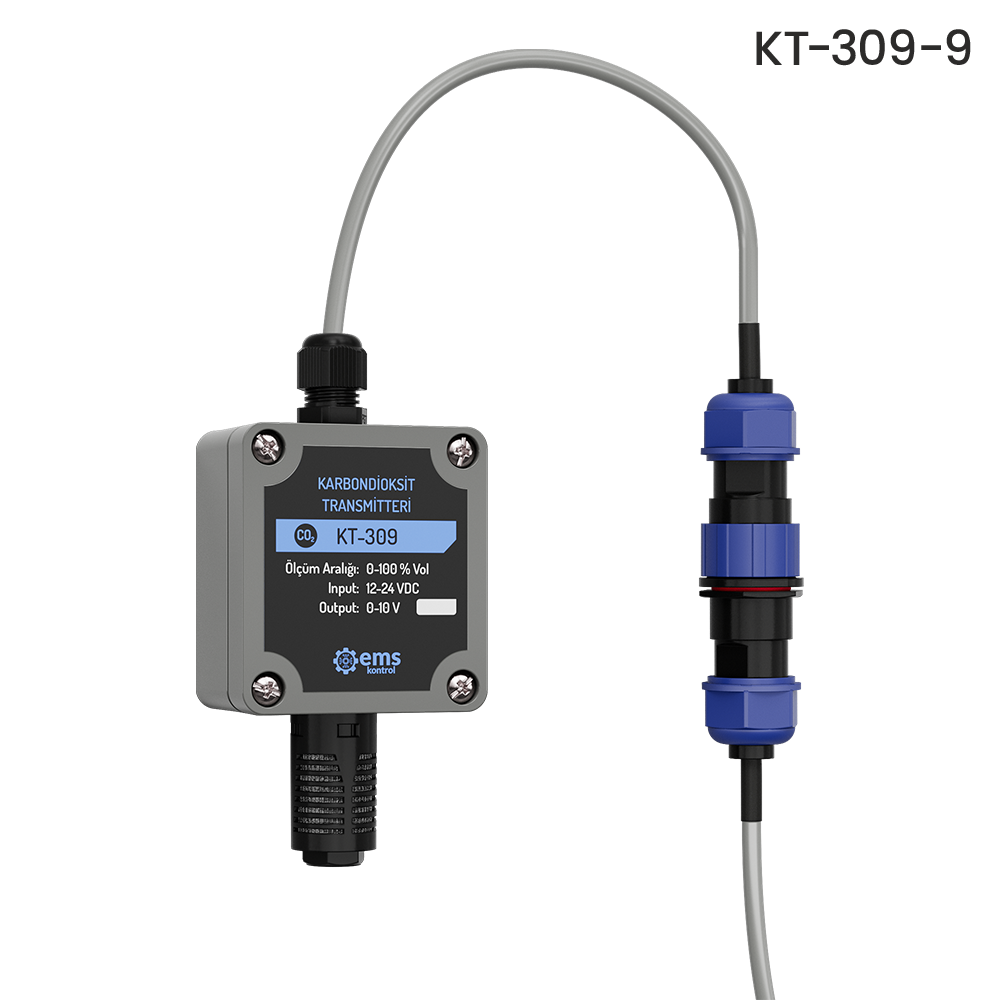

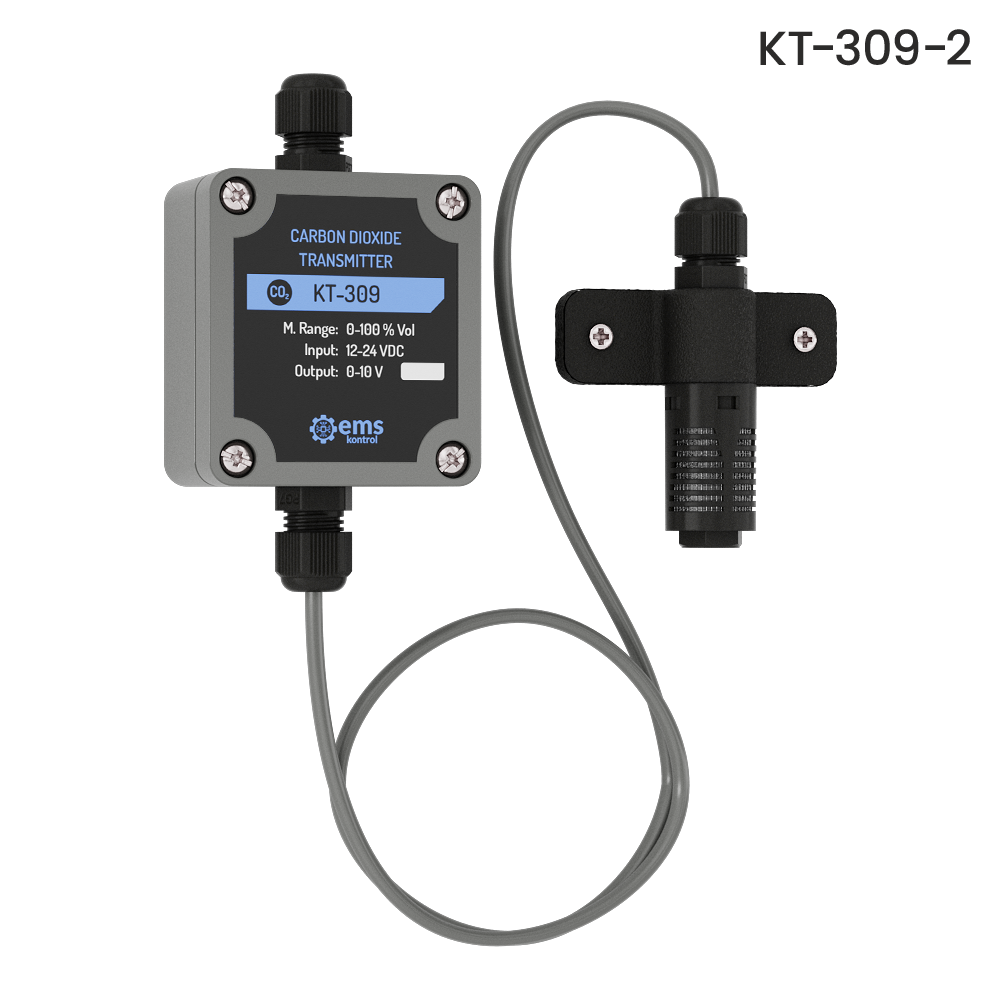

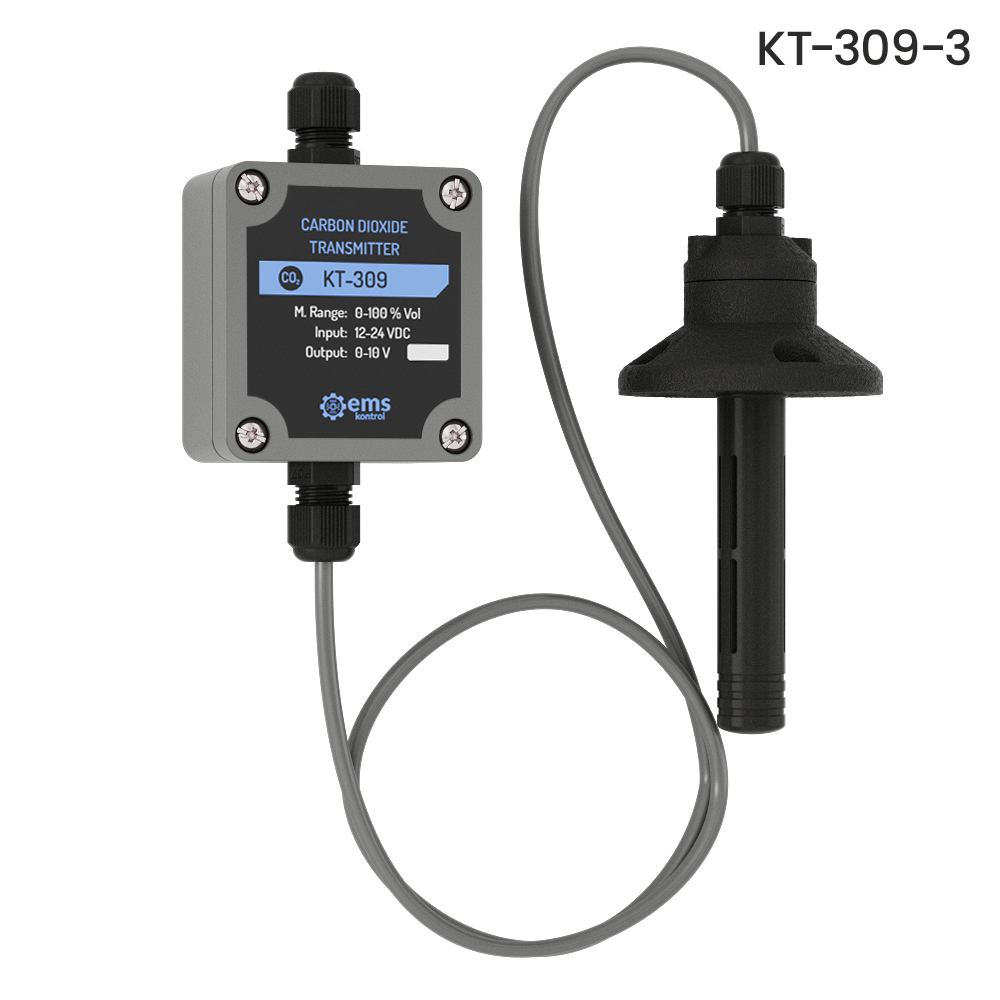

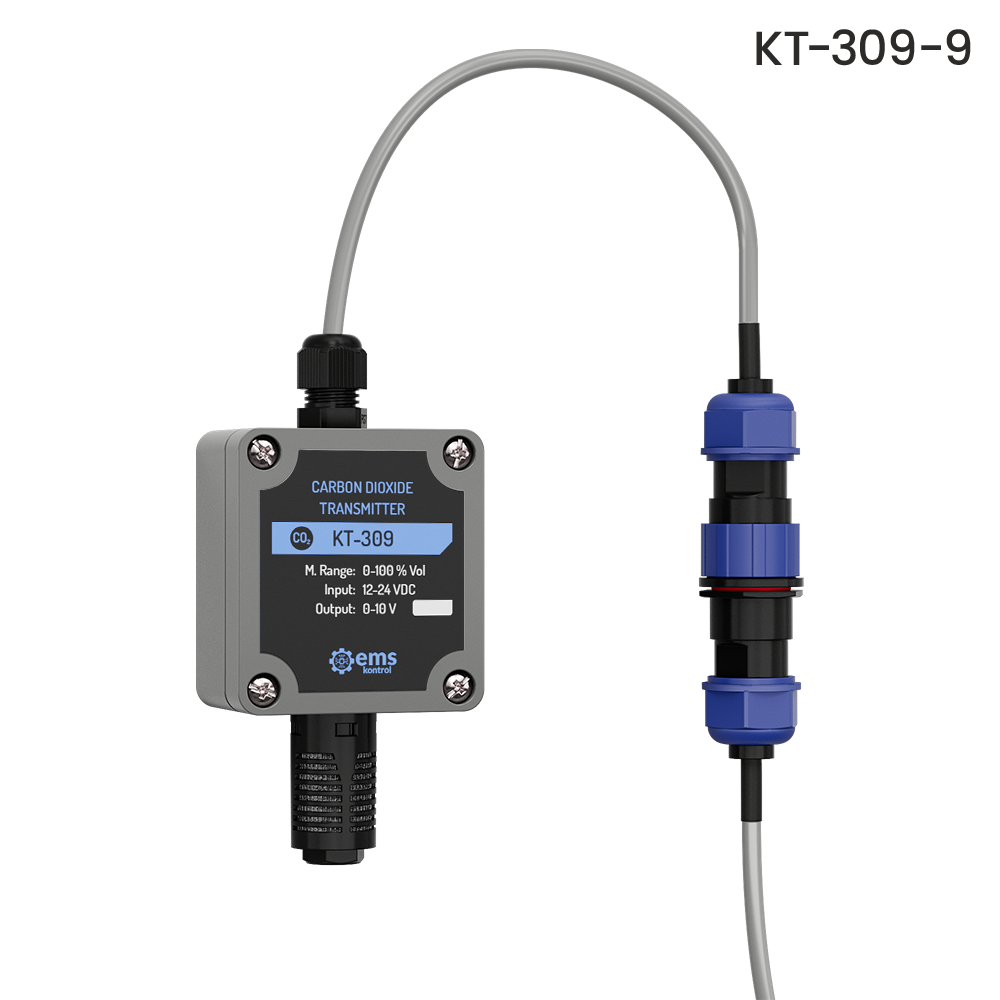

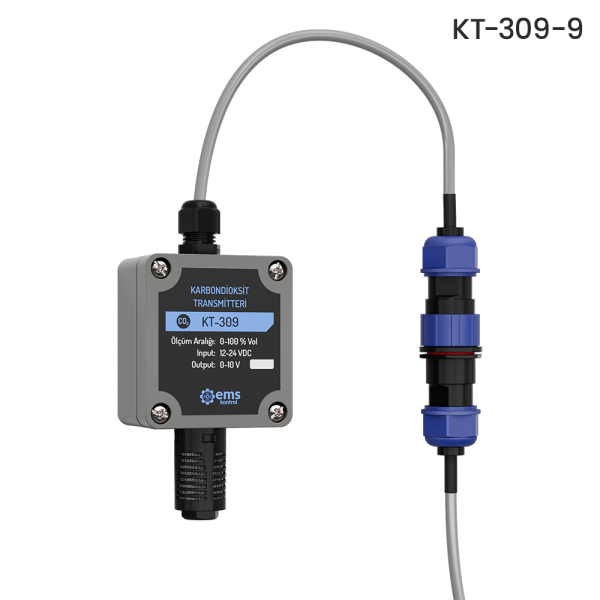

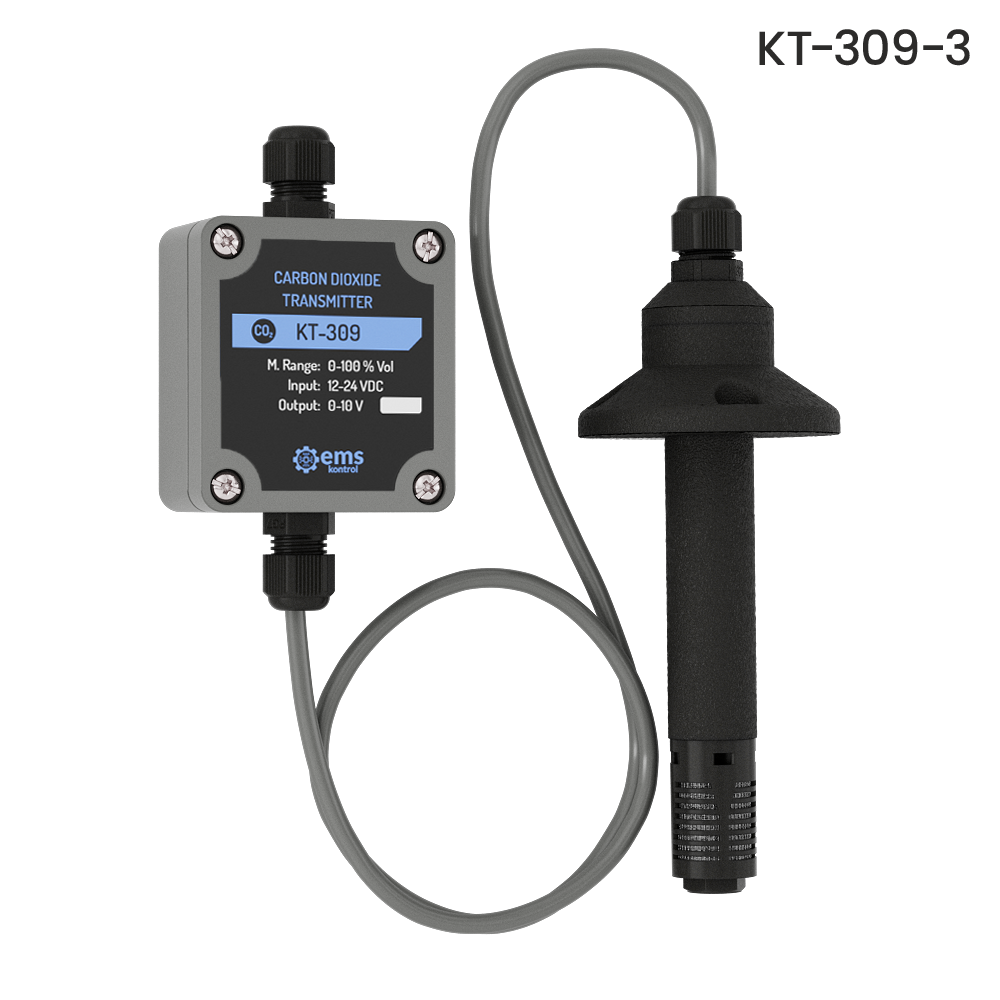

| 1m Wall Mounted | 1m Channel Mounted | Socketed | |||
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 122 mm | 58 mm | 35 mm | 64 mm | 36 mm | 20 mm |
