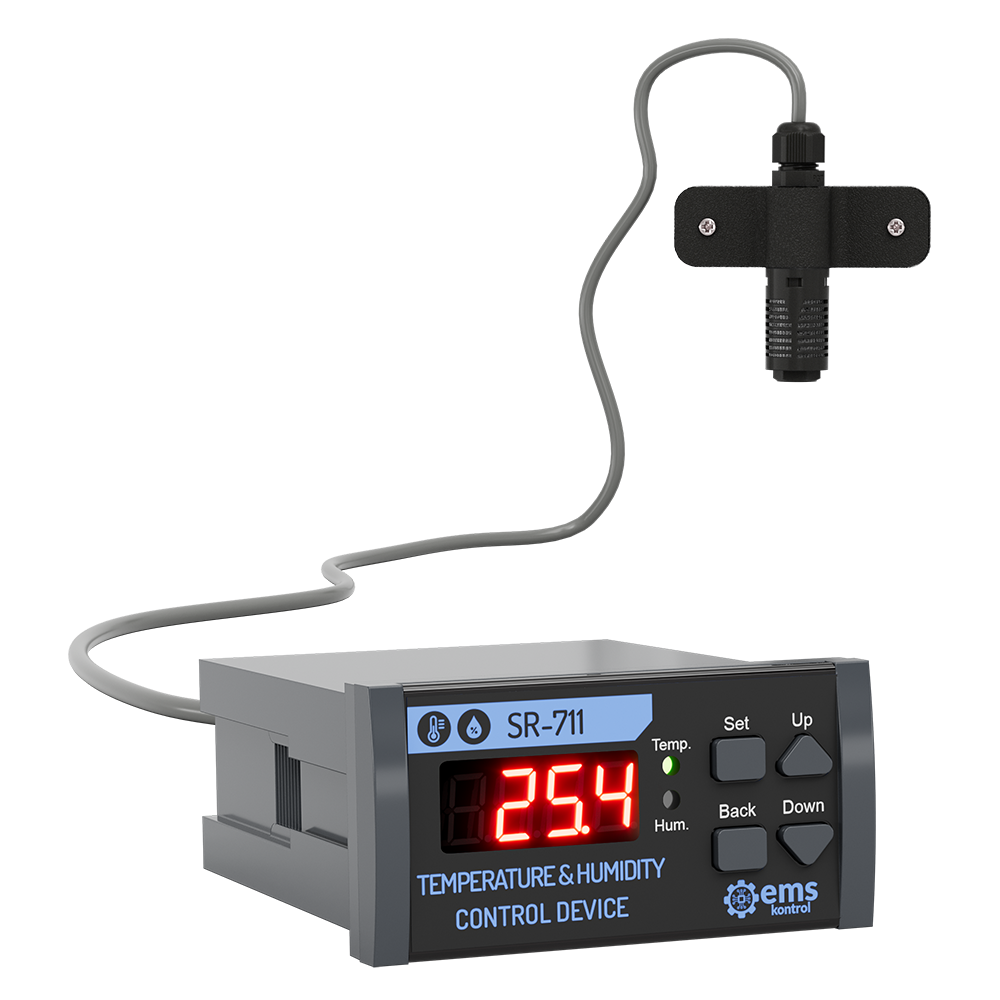

SR-711 PANEL TYPE TEMPERATURE & HUMIDITY CONTROL DEVICE
Panel Type Sensors With RelayPanel type temperature and humidity control device allows you to control the temperature and humidity devices you are using within the desired value range by measuring the temperature and relative humidity value in the environment.
- Accurate and Precise Measuring
- 2 Relay Outputs
- Durable and Handy Design
- Long Operating Life
- Cleanable Filter
- Panel Type Mounting
- Adjustable Relay Sensitivity
| Product Informations | |
|---|---|
| Product Name | SR-711 Panel Type Temperature and Humidity Control Device |
| Input | 220 V AC |
| Output | Relay (2A) |
| Sensor | Temperature | Humidity |
|---|---|---|
| Measuring Range | (-40) – (+60) °C (-40) – (+100) °C * | 0-100 % |
| Sensitivity | ± 0,1 °C | ± % 1 |
| Accuracy | ± 0,3 °C | ± % 3 |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 103 mm | 72 mm | 36 mm | 93 mm | 66,5 mm | 31,75 mm |
