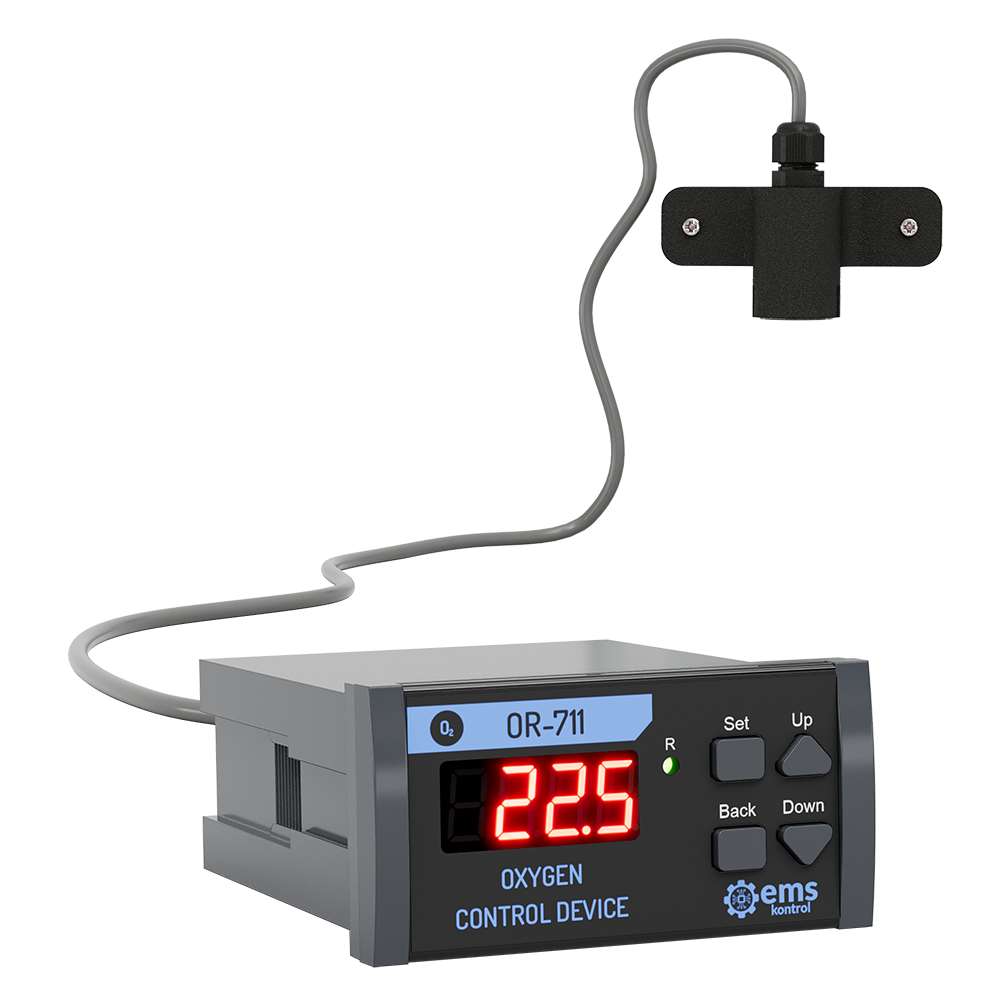

OR-711 PANEL TYPE OXYGEN CONTROL DEVICE
Panel Type Sensors With RelayPanel type oxygen control device allows you to control the oxygen devices you are using within the desired value range by measuring the oxygen value in the environment.
- Accurate and Precise Measuring
- 1 Relay Output
- Durable and Handy Design
- 2 Years Sensor Operating Life
- Easy Replaceable Sensor
- Panel Type Mounting
- Adjustable Relay Sensitivity
| Product Informations | |
|---|---|
| Product Name | OR-711 Panel Type Oxygen Control Device |
| Input | 220 V AC |
| Output | Relay (2A) |
| Sensor | Oxygen |
|---|---|
| Measuring Range | 0 – 25 % VOL |
| Sensitivity | ± 0,1 % VOL |
| Accuracy | ± 1 % VOL |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 103 mm | 72 mm | 36 mm | 93 mm | 66,5 mm | 31,75 mm |
