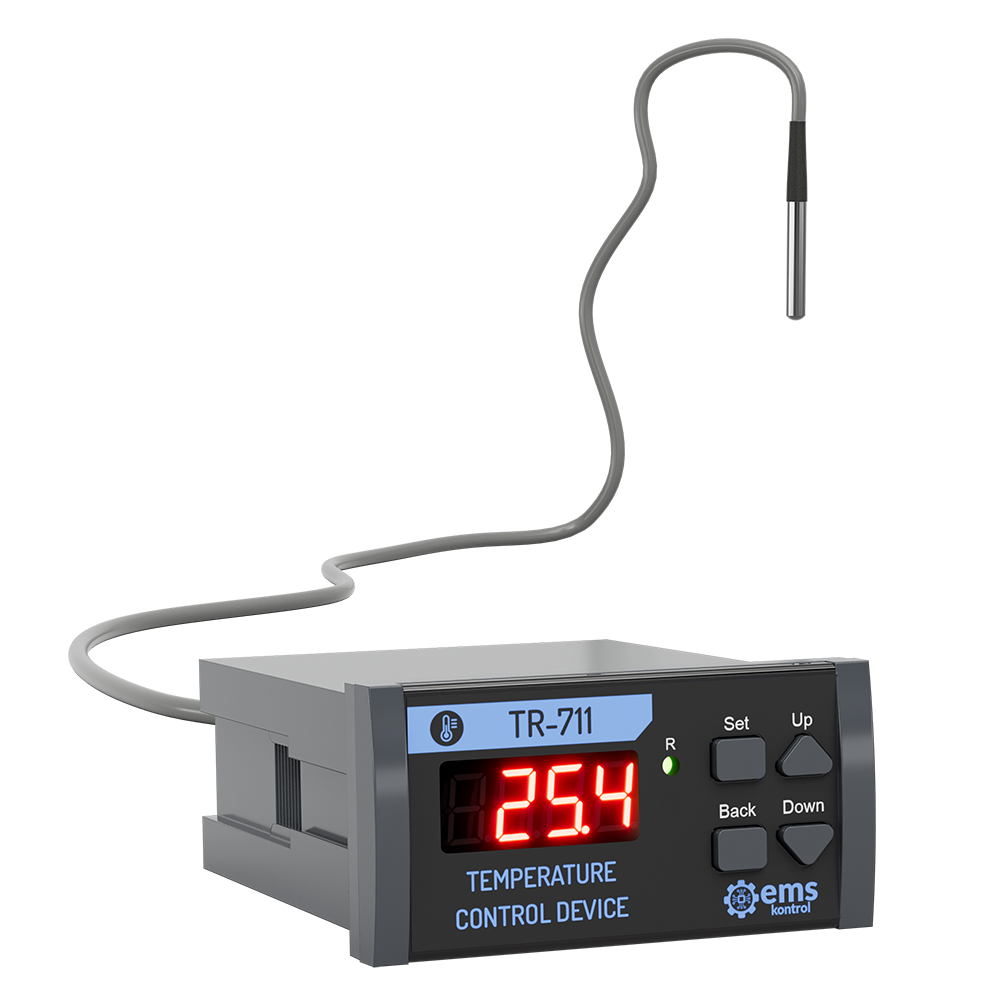

TR-711 / 713 PANEL TYPE TEMPERATURE CONTROL DEVICE
Panel Type Sensors With RelayPanel type temperature control device allows you to control the temperature devices you are using within the desired value range by measuring the temperature value in the environment.
- Accurate and Precise Measuring
- 1 Relay Output
- Durable and Handy Design
- Long Operating Life
- Panel Type Mounting
- Adjustable Relay Sensitivity
| Product Informations | |
|---|---|
| Product Name | TR-711 / 713 Panel Type Temperature Control Device |
| Input | 12-24 V DC |
| Output | Röle (5A) |
| Product Code | M. Range | Sensitivity | Accuracy |
|---|---|---|---|
| TR-711 | -40…+100 °C | ± 0,1 °C | ± 0,5 °C |
| TR-713 | -40…+150 °C | ± 0,1 °C | ± 0,1 °C |
| Product Code | Sensör Type |
|---|---|
| TR-711 | NTC-10K |
| TR-713 | PT-1000 |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 103 mm | 72 mm | 36 mm | 93 mm | 66,5 mm | 31,75 mm |
