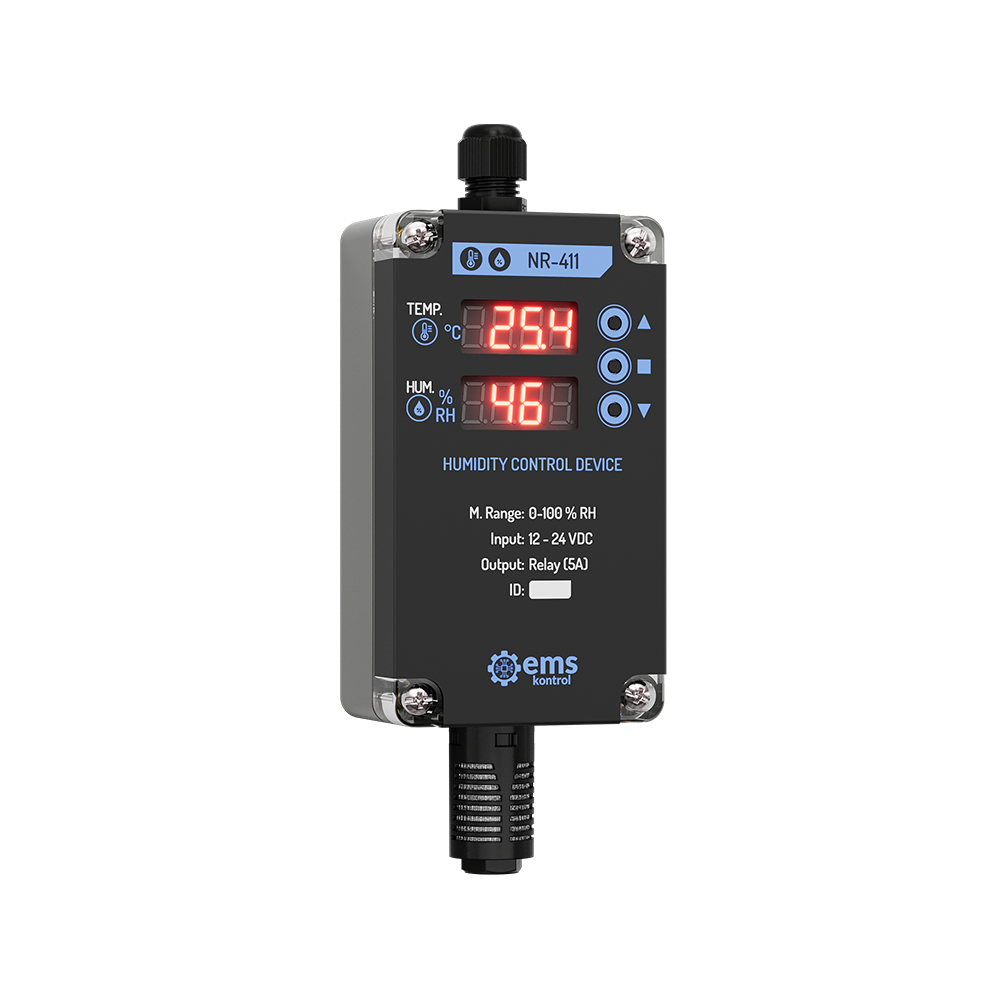

NR-4XX HUMIDITY CONTROL DEVICE
Wall Mounted Control DeviceHumidity control device allows you to control the humidity devices you are using within the desired value range by precisely measuring the relative humidity value in the environment.
- Accurate and Precise Measuring
- 1 Relay Outputs
- Buzzer (Optional)
- Long Operating Life
- Cleanable Filter
- Easy Assembling
- Adjustable Relay Sensitivity
| Product Informations | |
|---|---|
| Product Name | NR-4XX Humidity Control Device |
| Input | 12-24 V DC |
| Output | 0-10 V / 2-10 V / 0-3 V / 4-20 mA / 0-20 mA / Relay(5A) |
| Sensor | M. Range | Sensitivity | Accuracy |
|---|---|---|---|
| Humidity | 0-100 % RH | ± 1 % RH | ± 3 % RH |
| Product Code | Output Signal |
|---|---|
| NR-411 | Relay (5A) |
| NR-401 | 0-10 V / Relay (5A) 2-10 V / Relay (5A) 0-3 V / Relay (5A) |
| NR-441 | 4-20 mA / Relay (5A) 0-20 mA / Relay (5A) |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 172 mm | 65 mm | 40 mm | 115 mm | 36 mm | 20 mm |
