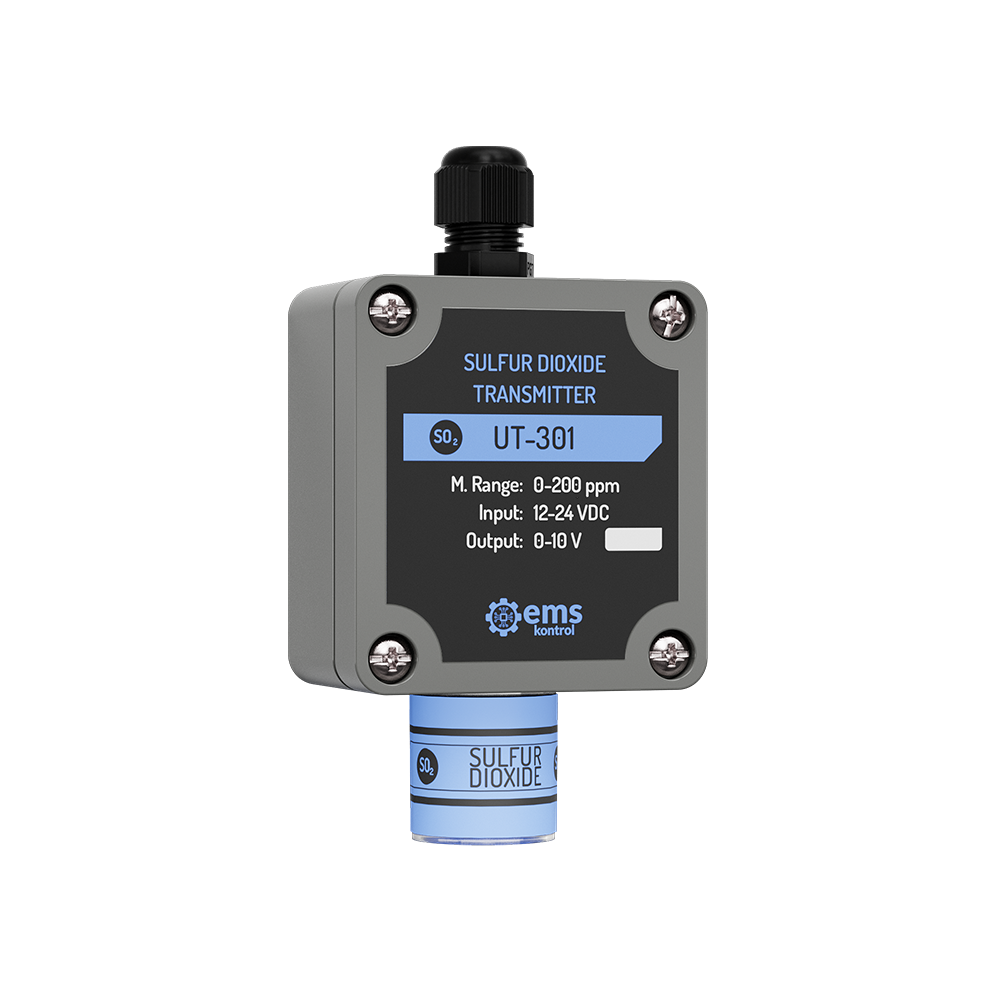

UT-3XX SULFUR DIOXIDE (SO₂) TRANSMITTER
Gas Group SensorsIt precisely measures the sulfur dioxide value in its environment and converts it into output signals in desired standards (such as 0-10V, 4-20mA, Modbus RTU).
- Accurate and Precise Measuring
- Analog Output
- Durable and Handy Design
- 2 Years Sensor Operating Life
- Easy Replaceable Sensor
- Easy Assembling
- IP 67 Plastic Case (Not Including Sensor)
| Product Informations | |
|---|---|
| Product Name | UT-3XX Sulfur Dioxide (SO₂) Transmitter |
| Input | 12-24 V DC |
| Output | 0-10 V / 2-10 V / 0-3 V / 4-20 mA / 0-20 mA / Modbus RTU |
| Sensor Op. Life | 2 Years |
| Product Code | Output Signal |
|---|---|
| UT-301 | 0-10 V / 2-10 V / 0-3 V |
| UT-341 | 4-20 mA / 0-20 mA |
| UT-361 | Modbus RTU |
| Sensor | Output Range | Sensitivity | Accuracy |
|---|---|---|---|
| Sulfur Dioxide | 0-100 ppm / 0 – 200 ppm | ± 0,1 ppm | ± 1 ppm |
| Model Product Codes | |||||
|---|---|---|---|---|---|
| 3X1-2 | 3X1-3 | ||||

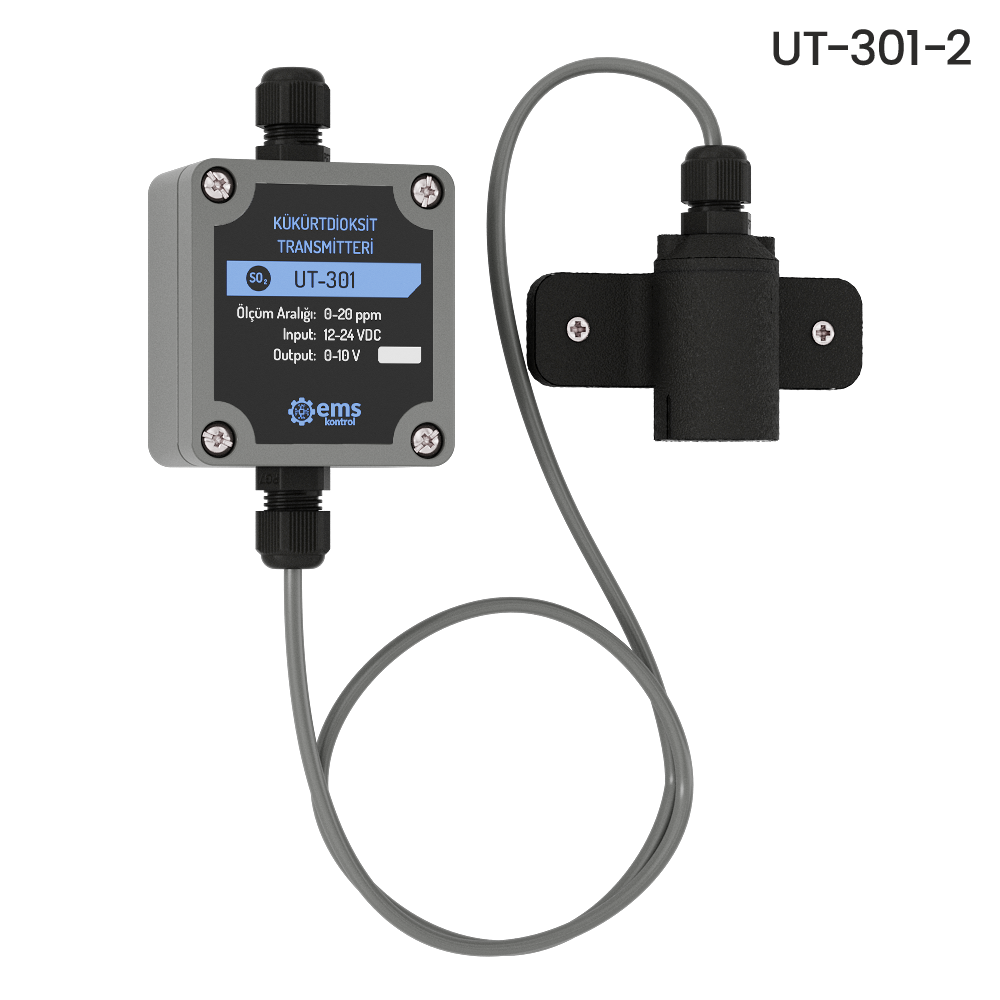

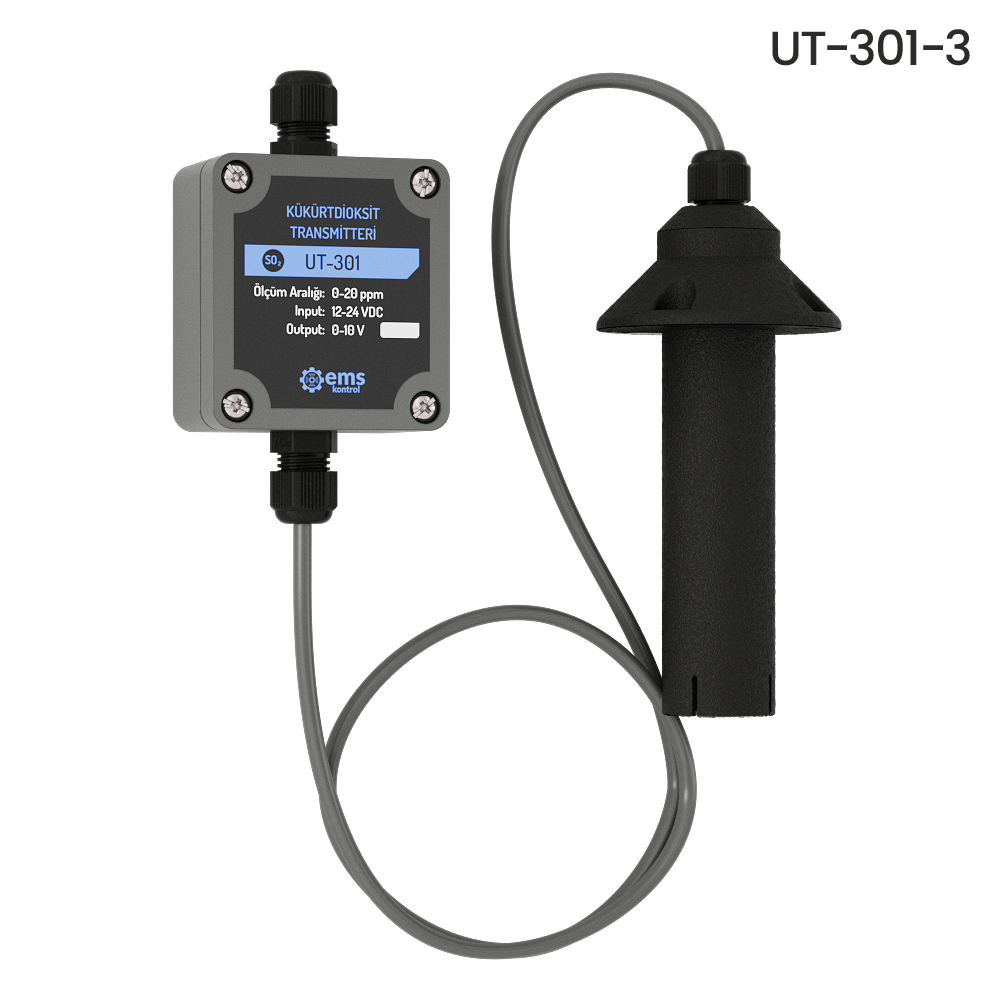

| Wall Type Probe | Duct Type Probe | ||||
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 110 mm | 58 mm | 35 mm | 64 mm | 24 mm | 24 mm |
