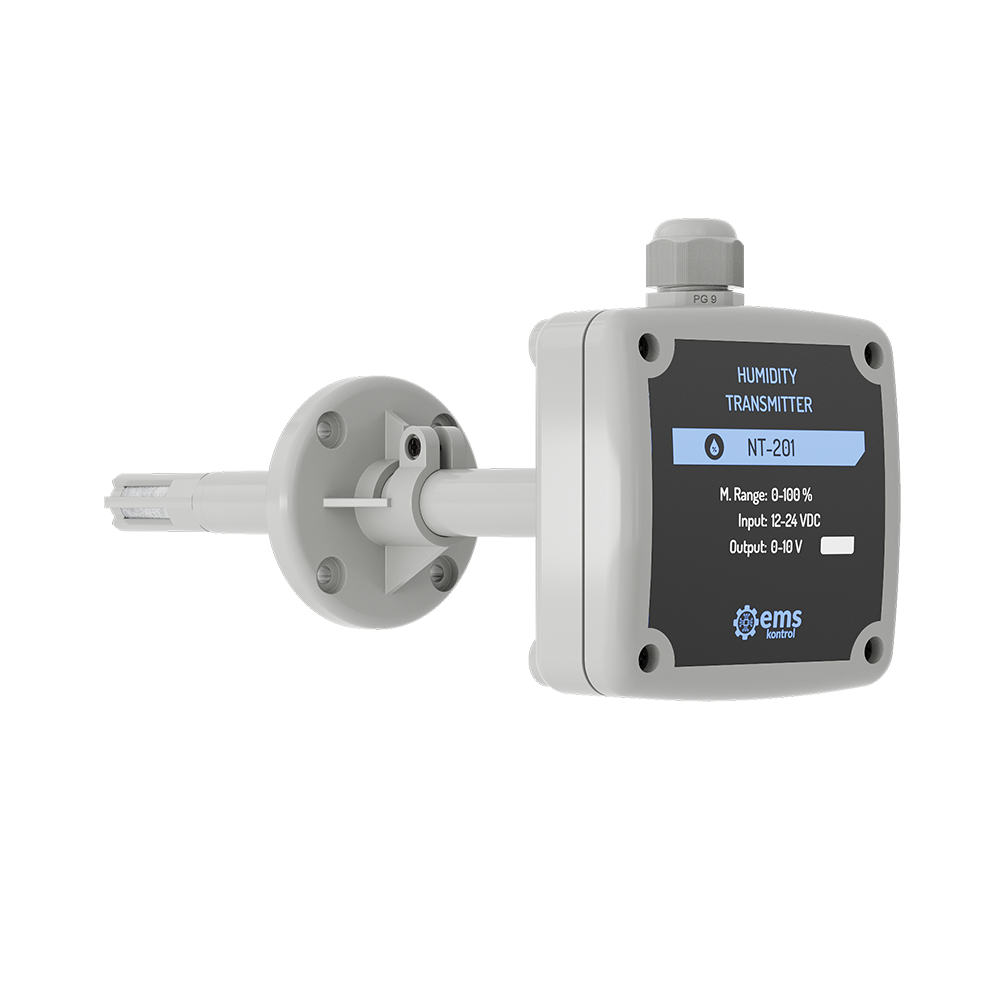

NT-2XX HUMIDITY DUCT TYPE TRANSMITTER
Humidity SensorsIt precisely measures the relative humidity values in the environment and convert it into output signals in desired standards (0-10V, 4-20mA, Modbus RTU).
- Accurate and Precise Measuring
- Analog Output
- Long Operating Life
- Cleanable Filter
- Easy Assembling
- IP 67 Plastic Case (Not Including Sensor)
| Product Informations | |
|---|---|
| Product Name | NT-2XX Humidity Duct Type Transmitter |
| Input | 12-24 V DC |
| Output | 0-10 V / 2-10 V / 0-3 V / 4-20 mA / 0-20 mA / Modbus RTU |
| Product Code | Output Signal |
|---|---|
| NT-201 | 0-10 V / 2-10 V / 0-3 V |
| NT-241 | 4-20 mA / 0-20 mA |
| NT-261 | Modbus RTU |
| Sensor | Output Range | Sensitivity | Accuracy |
|---|---|---|---|
| Humidity | 0-100 % RH | ± 1 % RH | ± 3 % RH |
| Model Product Codes | |||||
|---|---|---|---|---|---|
| 2X1 | 2X1-3 | ||||

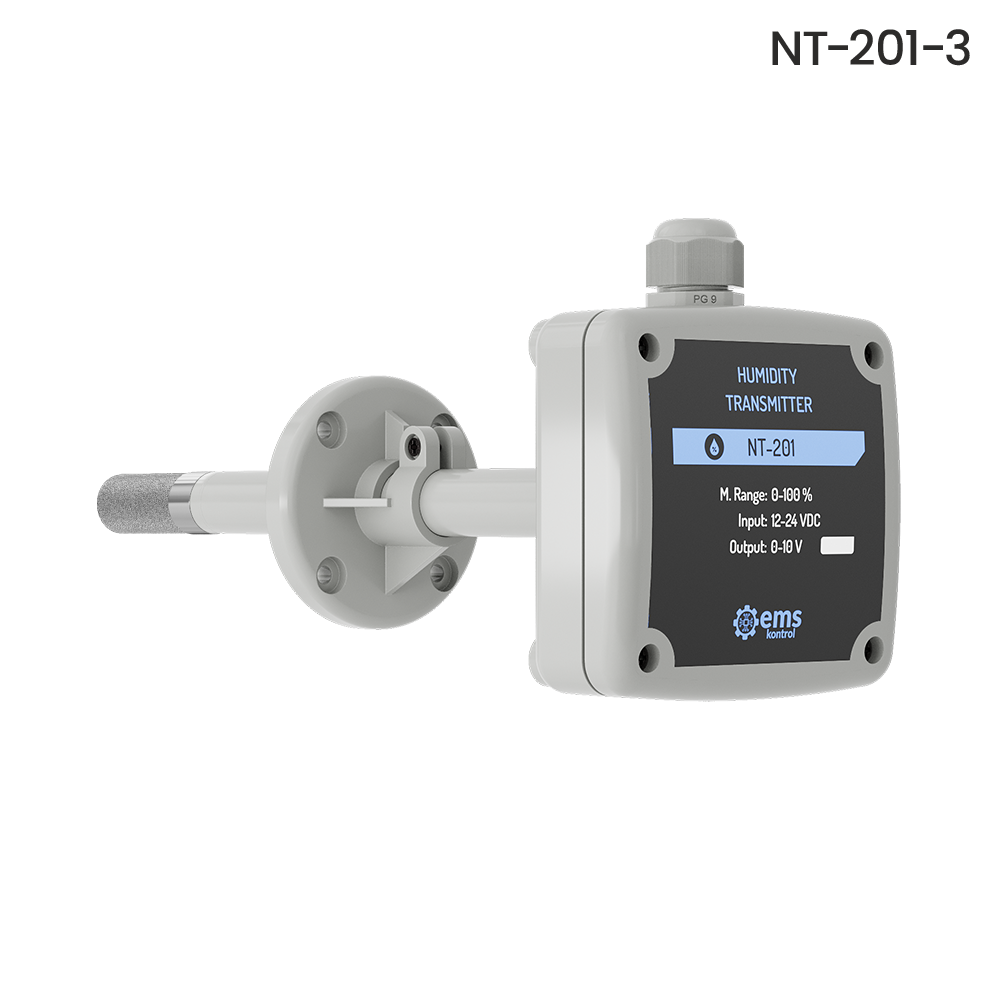

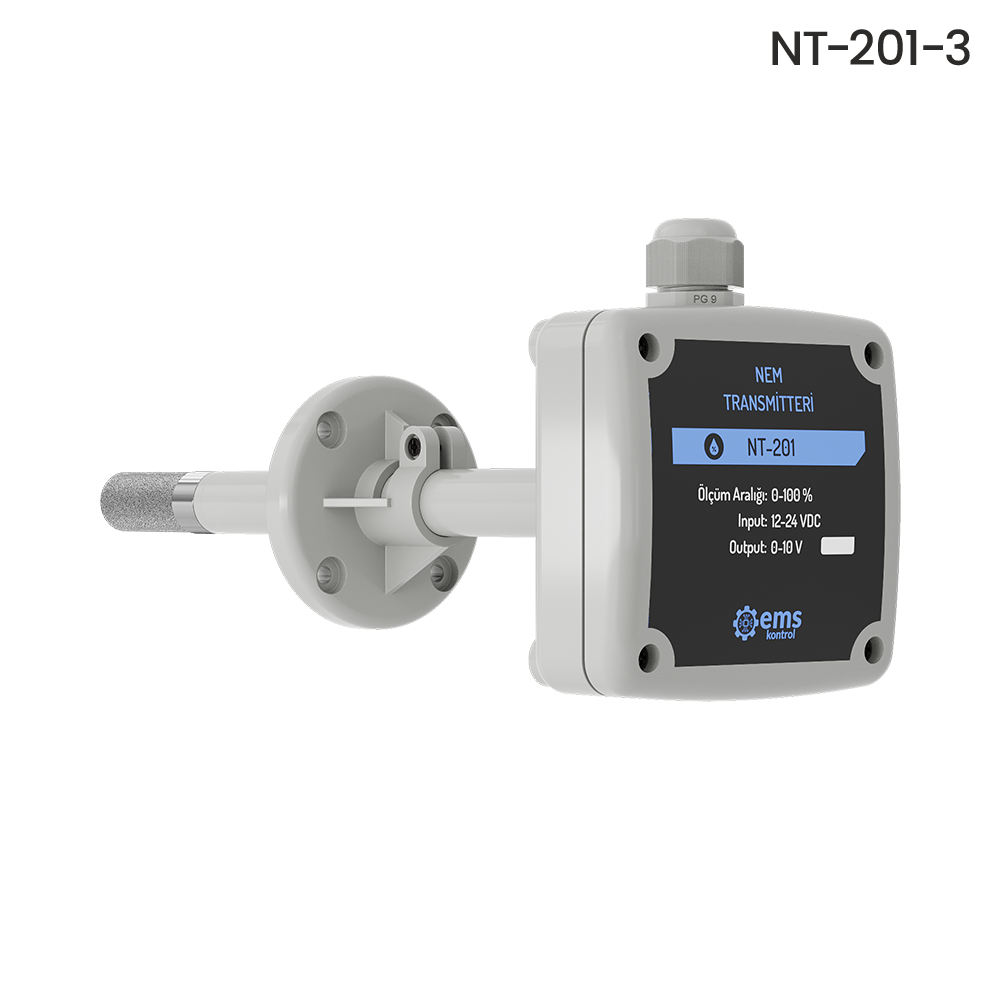

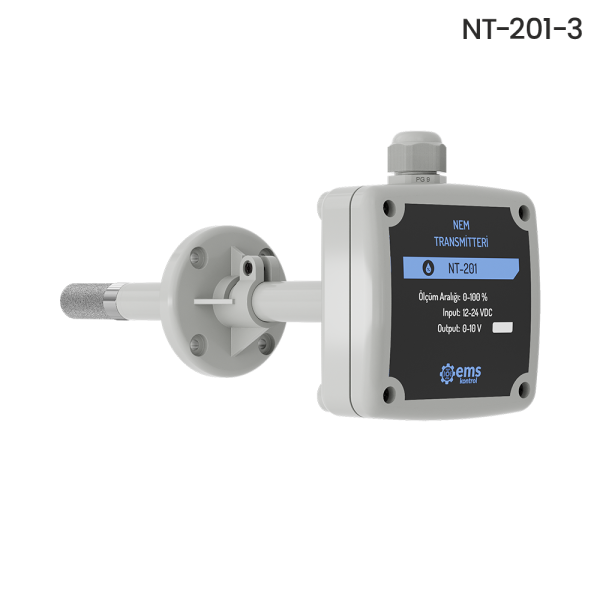

| Duct Type | Duct Type Sintered Probe | ||||
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 102 mm | 80 mm | 229 mm | 80 mm | 15 mm | 191 mm |
