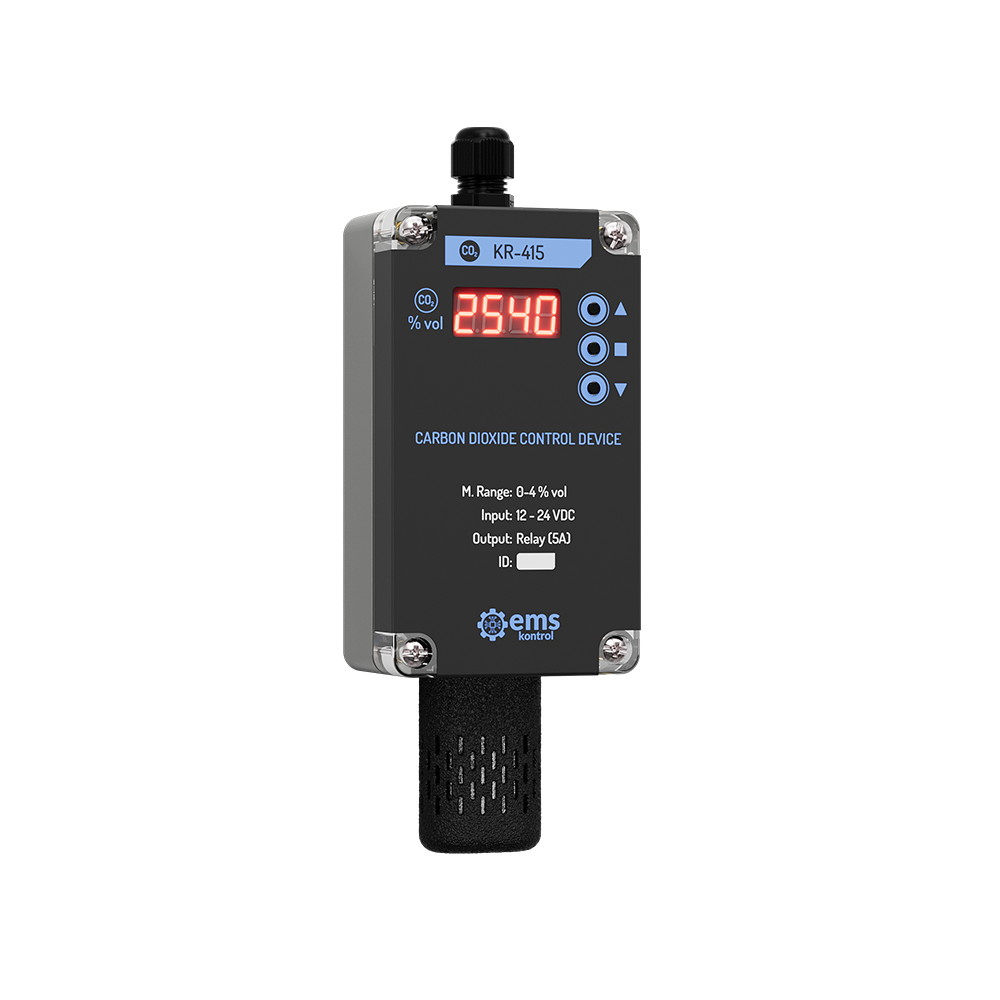

KR-4X5 CARBON DIOXIDE CONTROL DEVICE
Sensors With RelayCarbon dioxide control device allows you to control the carbon dioxide devices you are using within the desired value range by precisely measuring the carbon dioxide values in the environment.
- Accurate and Precise Measuring
- 1 Relay Output
- Buzzer (Optional)
- Long Operating Life
- Cleanable Filter
- Easy Assembling
- Adjustable Relay Sensitivity
| Product Informations | |
|---|---|
| Product Name | KR-4X5 Carbon Dioxide (CO₂) Control Device |
| Input | 12-24 V DC |
| Output | 0-10 V / 2-10 V / 0-3 V / 4-20 mA / 0-20 mA / Relay(5A) |
| Product Code | M. Range | Sensitivity | Accuracy |
|---|---|---|---|
| KR-415 | 0-4 % vol | ± 10 ppm | ± 50 ppm + %2 |
| Product Code | Output Range | Sensitivity | Accuracy |
|---|---|---|---|
| KR-405 / 445 | 0-4 % vol | ± 10 ppm | ± 50 ppm + %2 |
| Product Code | Output Signal |
|---|---|
| KR-415 | Relay (5A) |
| KR-405 | 0-10 V / Relay (5A) 2-10 V / Relay (5A) 0-3 V / Relay (5A) |
| KR-445 | 4-20 mA / Relay (5A) 0-20 mA / Relay (5A) |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 182 mm | 65 mm | 40 mm | 115 mm | 45 mm | 31 mm |
