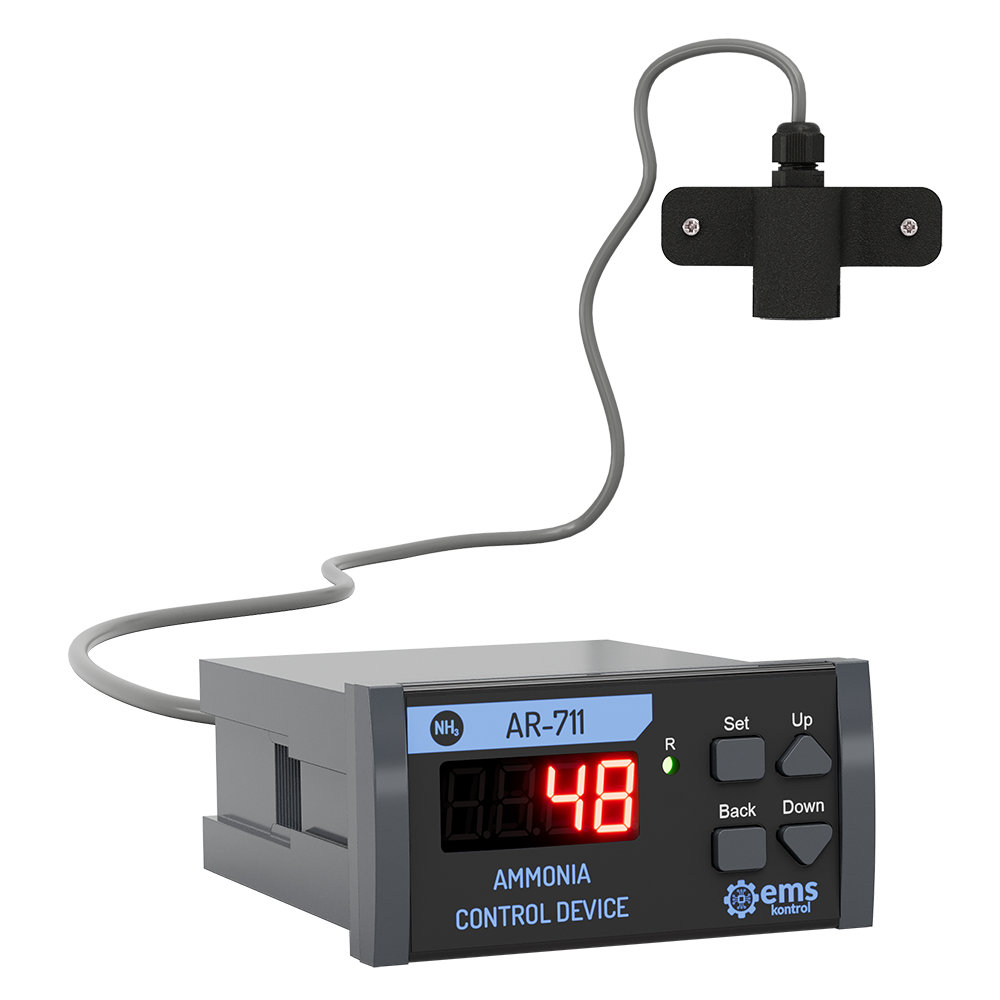

AR-711 PANEL TYPE AMMONIA CONTROL DEVICE
Panel Type Sensors With RelayPanel type ammonia control device allows you to control the ammonia devices you are using within the desired value range by measuring the ammonia value in the environment.
- Accurate and Precise Measuring
- 1 Relay Output
- Durable and Handy Design
- 2 Years Sensor Operating Life
- Easy Replaceable Sensor
- Panel Type Mounting
- Adjustable Relay Sensitivity
| Product Informations | |
|---|---|
| Product Name | AR-711 Panel Type Ammonia Control Device |
| Input | 220 V AC |
| Output | Relay (2A) |
| Sensor | Ammonia |
|---|---|
| Measuring Range | 0 – 100 ppm |
| Sensitivity | ± 1 ppm |
| Accuracy | ± 2 ppm |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 103 mm | 72 mm | 36 mm | 93 mm | 66,5 mm | 31,75 mm |
