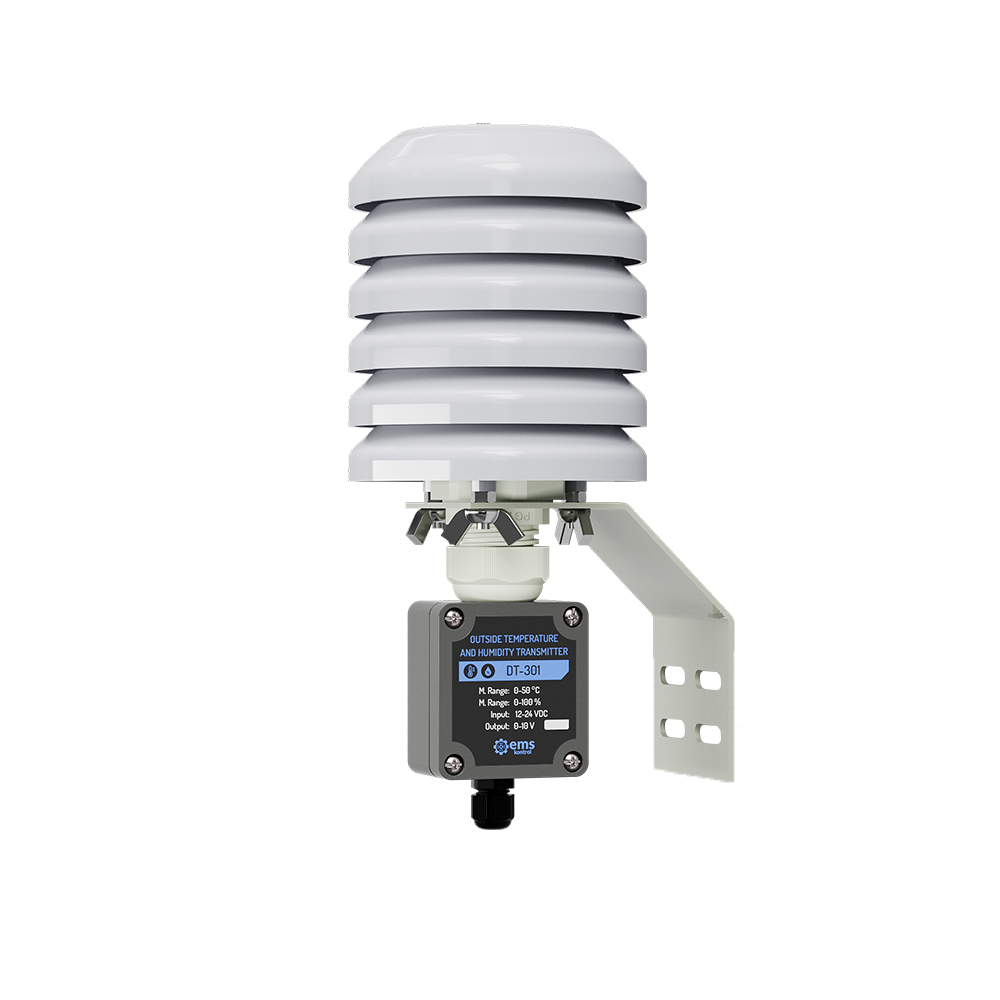

DT-3XX OUTSIDE TEMPERATURE & HUMIDITY TRANSMITTER
Humidity SensorsTemperature SensorsIt precisely measures the temperature and relative humidity values in the environment and convert it into output signals in desired standards (0-10V, 4-20mA, Modbus RTU).
- Radiation and Rain Protection
- Accurate and Precise Measuring
- Analog Output
- Long Operating Life
- Easy Assembling
- IP 67 Plastic Case (Not Including Sensor)
| Product Informations | |
|---|---|
| Product Name | DT-3XX Outside Temperature and Humidity Transmitter |
| Input | 12-24 V DC |
| Output | 0-10 V / 2-10 V / 0-3 V / 4-20 mA / 0-20 mA / Modbus RTU |
| Sensor | Temperature | Humidity |
|---|---|---|
| Output Range | 0 – 50 °C / -20…+80 °C | 0-100 % RH |
| Sensitivity | ± 0,1 °C | ± 1 % RH |
| Accuracy | ± 0,3 °C | ± 3 % RH |
| Product Code | Output Signal |
|---|---|
| DT-301 | 0-10 V / 2-10 V / 0-3 V |
| DT-341 | 4-20 mA / 0-20 mA |
| DT-361 | Modbus RTU |
| Dimensions | ||
|---|---|---|
| A | B | C |
| 258 mm | 142 mm | 110 mm |
