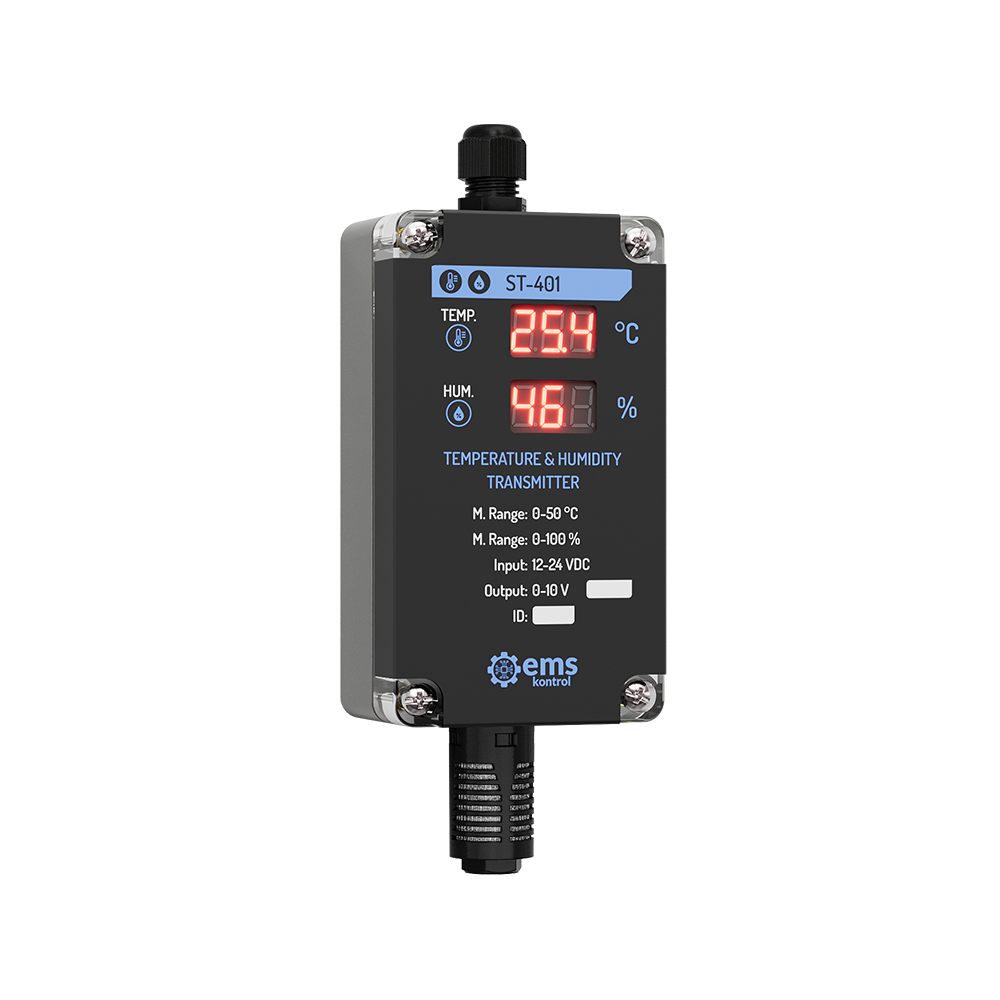

ST-4XX TEMPERATURE & HUMIDITY TRANSMITTER WITH DISPLAY
Humidity SensorsTemperature SensorsIt precisely measures the temperature and relative humidity values in the environment and convert it into output signals in desired standards (0-10V, 4-20mA, Modbus RTU).
- Accurate and Precise Measuring
- Analog Output
- Durable and Handy Design
- Long Operating Life
- Cleanable Filter
- Easy Assembling
- IP 67 Plastic Case (Not Including Sensor)
| Product Informations | |
|---|---|
| Product Name | ST-4XX Temperature and Humidity Transmitter with Display |
| Input | 12-24 V DC |
| Output | 0-10 V / 2-10 V / 0-3 V / 4-20 mA / 0-20 mA / Modbus RTU |
| Product Code | Output Signal |
|---|---|
| ST-401 | 0-10 V / 2-10 V / 0-3 V |
| ST-441 | 4-20 mA / 0-20 mA |
| ST-461 | Modbus RTU |
| Sensor | Output Range | Sensitivity | Accuracy |
|---|---|---|---|
| Temperature | 0–50 °C / 0–100 °C / -20…+80 °C / -40…+80 °C / -40…+100 °C | ± 0,1 °C | ± 0,3 °C |
| Humidity | 0-100 % RH | ± 1 % RH | ± 3 % RH |
| Model Product Codes | |||||
|---|---|---|---|---|---|

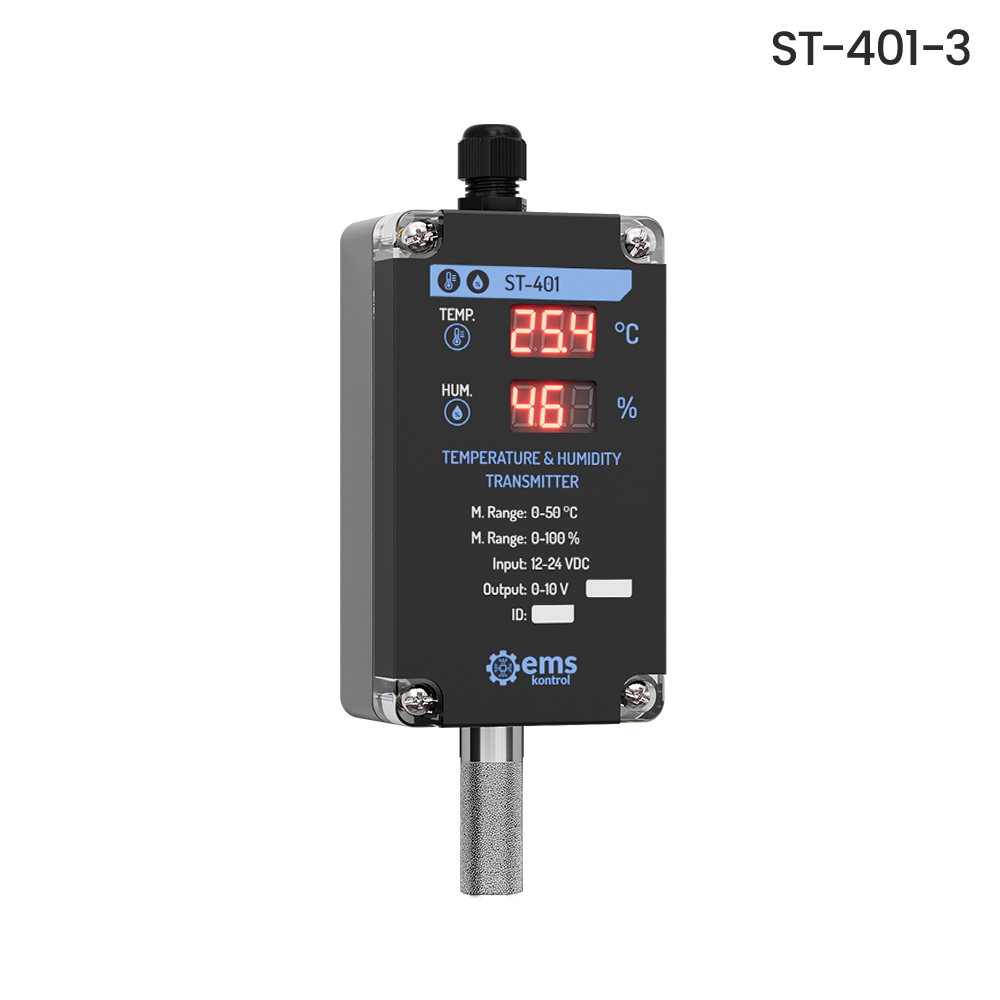

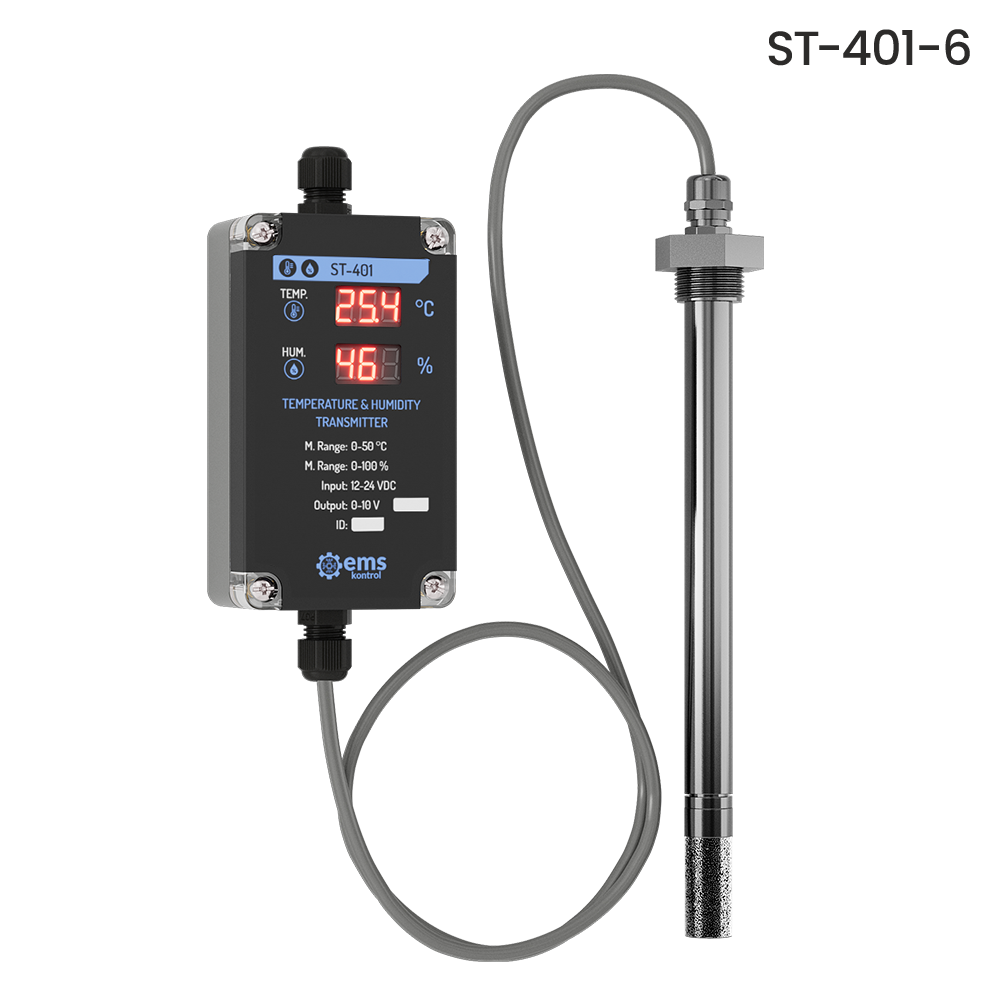

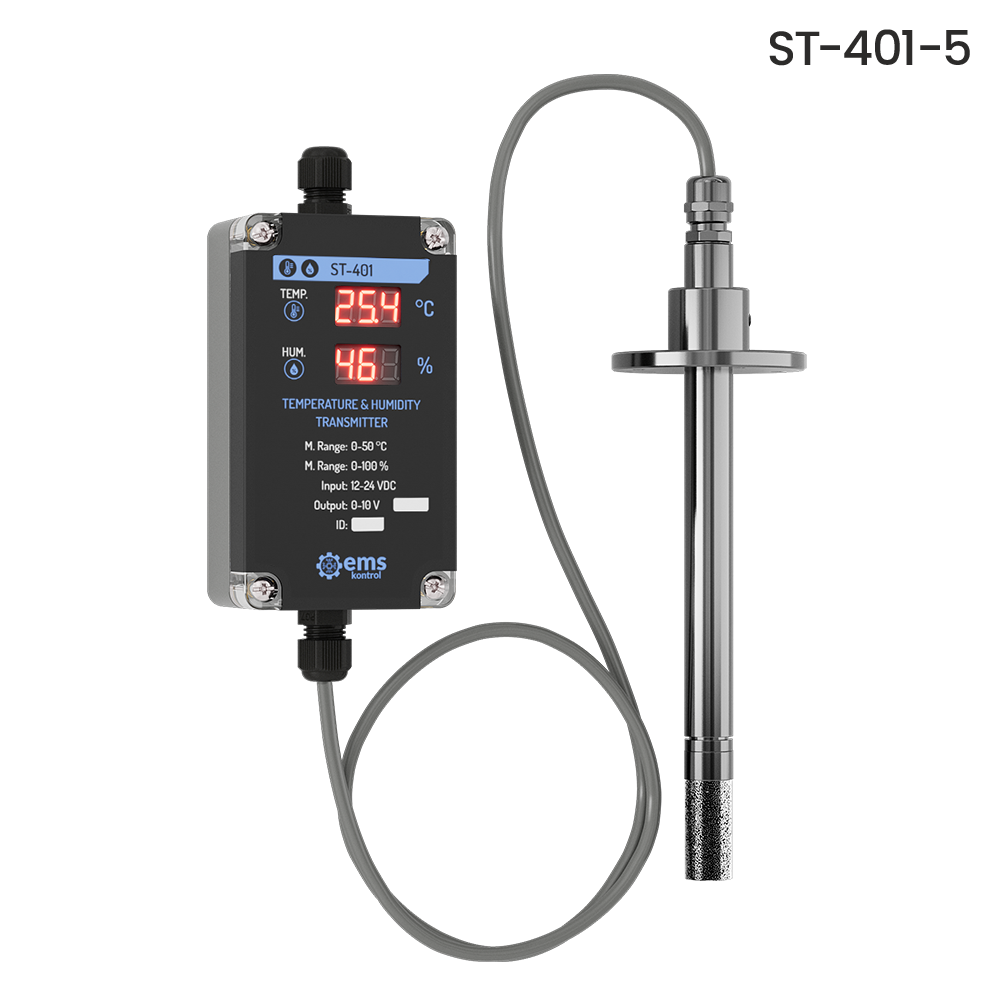

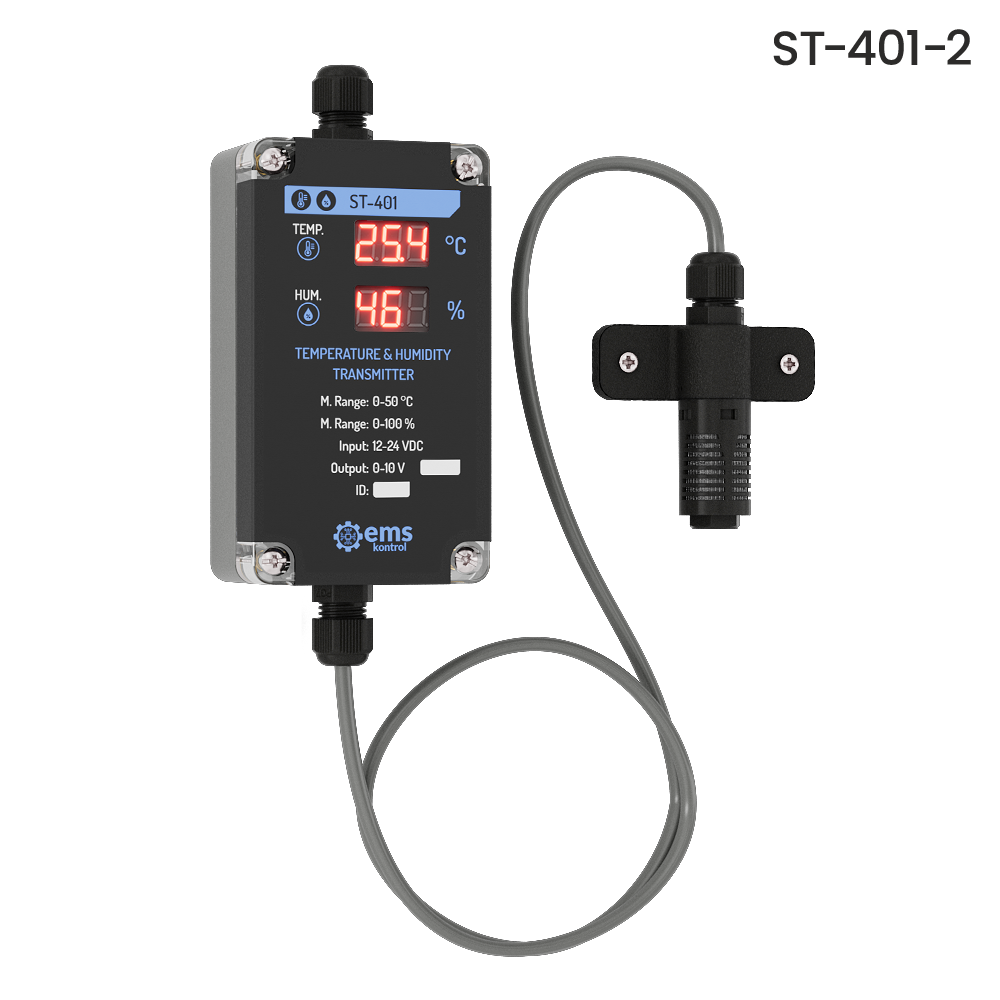

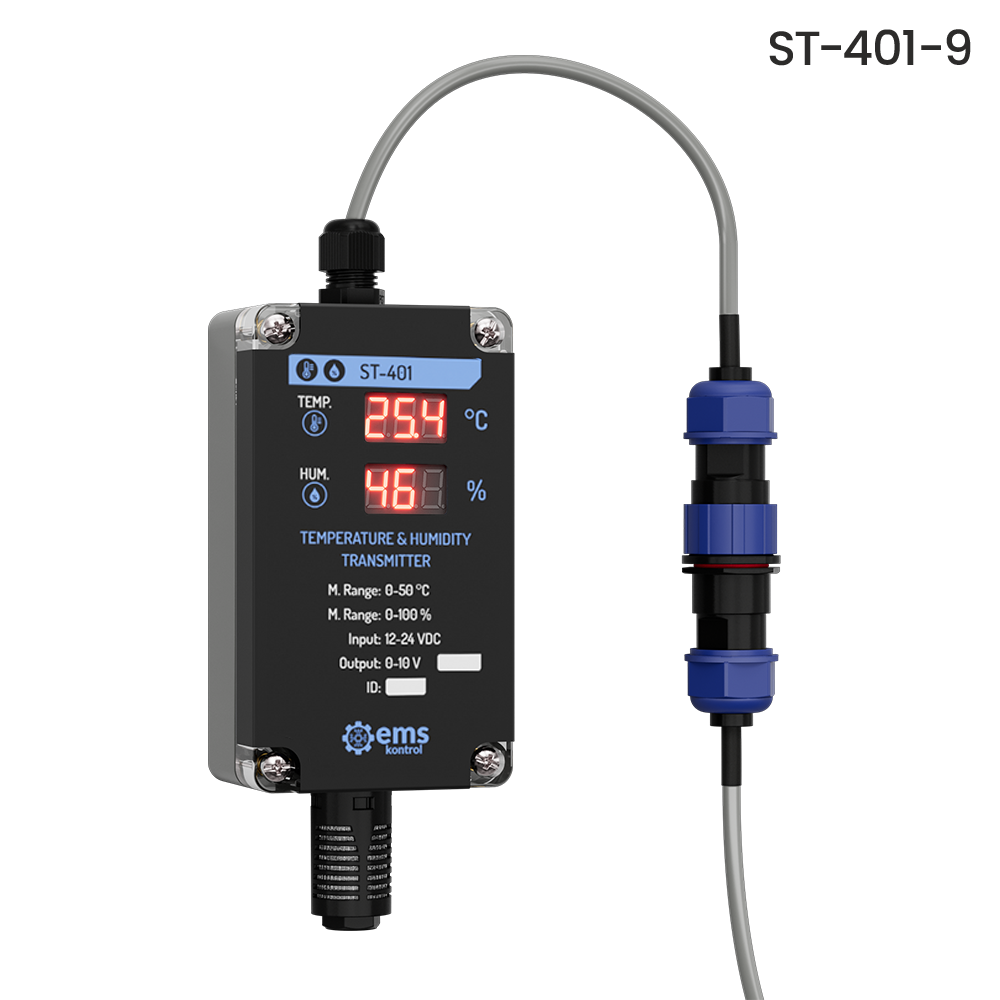

| 4X1-2 | 4X1-3 | 4X1-4 | 4X1-5 | 4X1-6 | 4X1-9 |
| Probe Cable | Sintered Probe | Sintered Probe Cable | Metal Probe Duct Type | Metal Probe Screw Type | IP Socket |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 172 mm | 65 mm | 40 mm | 115 mm | 36 mm | 20 mm |
