TT-4XX TEMPERATURE TRANSMITTER WITH DISPLAY
Temperature SensorsIt precisely measures the temperature values in the environment and convert it into output signals in desired standards (0-10V, 4-20mA, Modbus RTU).
- Accurate and Precise Measuring
- Analog Output
- Long Operating Life
- Easy Assembling
- IP 67 Plastic Case
** Sensor cable length can be changed (0-10 m) according to demand.
** Metal probe length can be selected as 50 mm or 100 mm.
| Product Informations | |
|---|---|
| Product Name | TT-4XX Temperature Transmitter With Display |
| Input | 12-24 V DC |
| Output | 0-10 V / 2-10 V / 0-3 V / 4-20 mA / 0-20 mA / Modbus RTU |
| Product Code | Output Range | Sensitivity | Accuracy |
|---|---|---|---|

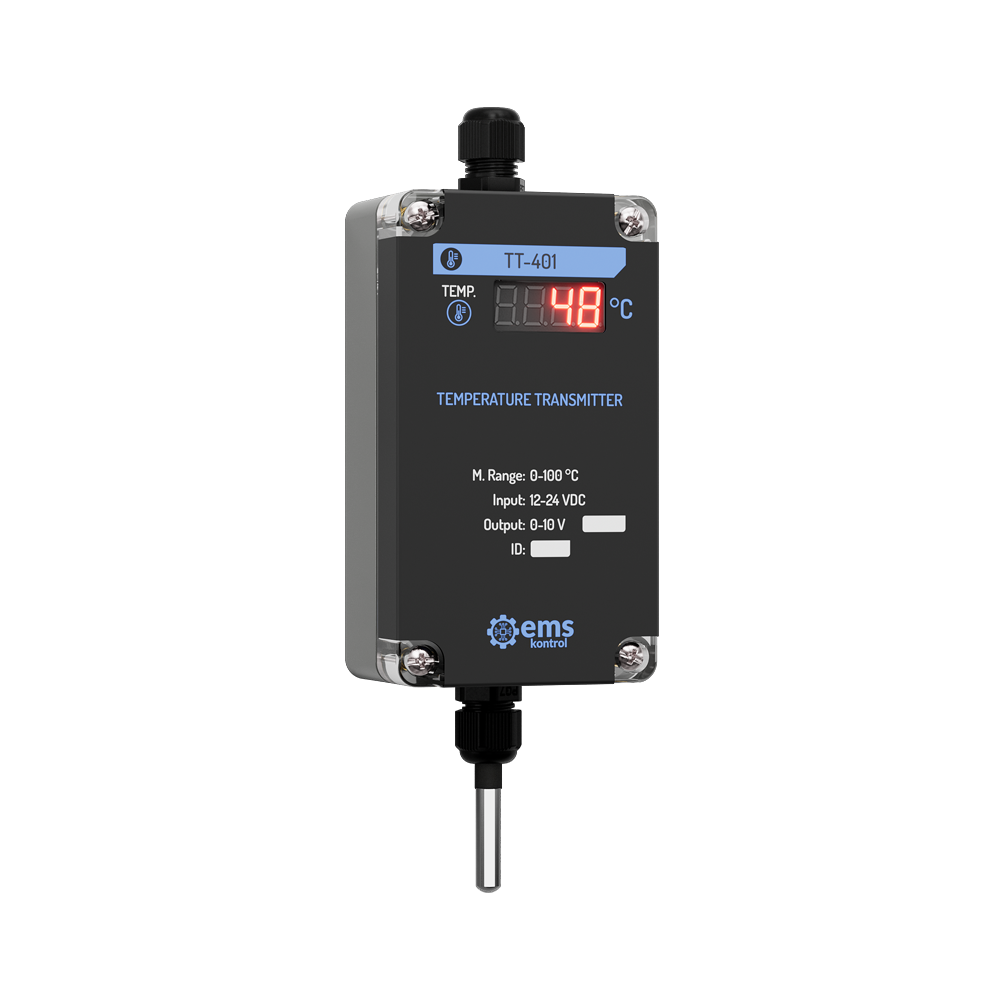

| TT-4X1 | 0–50 °C / 0–100 °C / -20…+80 °C / -40…+100 °C | ± 0,1 °C | ± 0,5 °C |

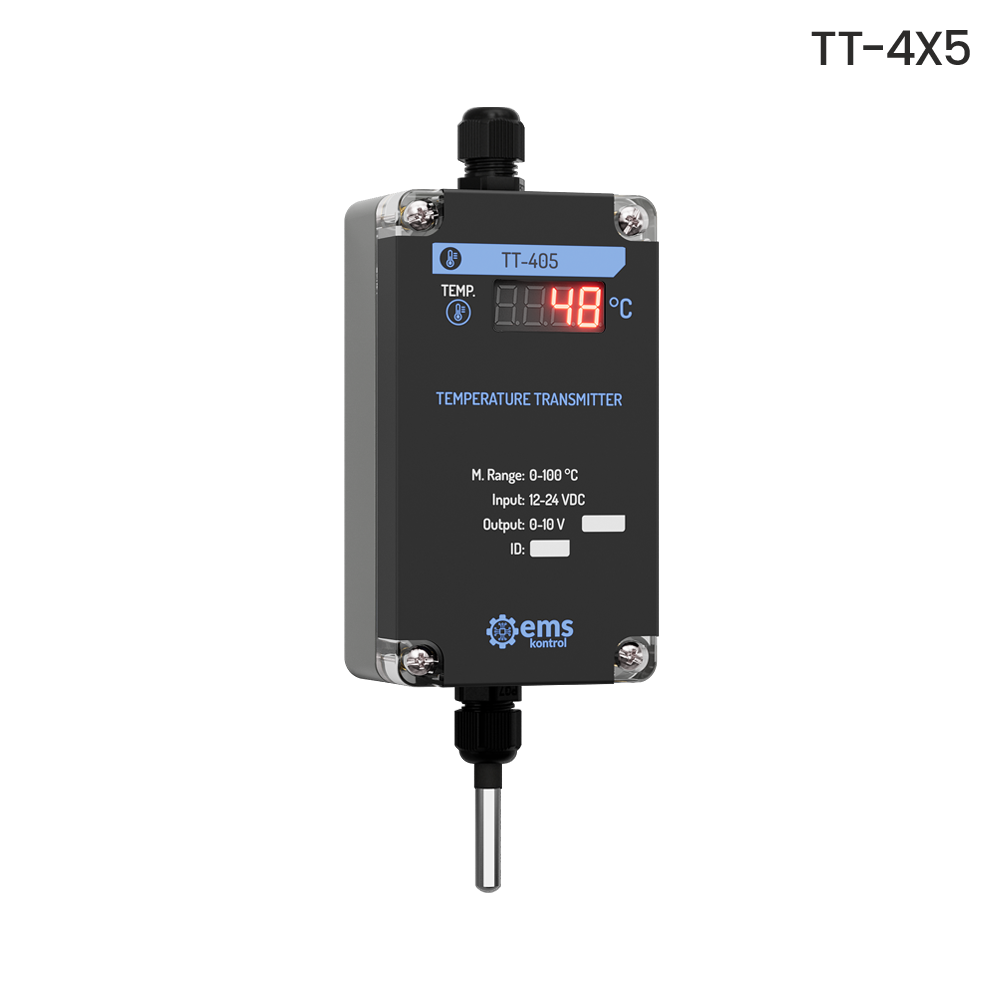

| TT-4X5 | 0–50 °C / 0–100 °C / -20…+80 °C / -40…+150 °C | ± 0,1 °C | ± 0,1 °C |
| Model Ürün Kodları | |||||
|---|---|---|---|---|---|
| 4X1-2 | 4X5-2 | ||||

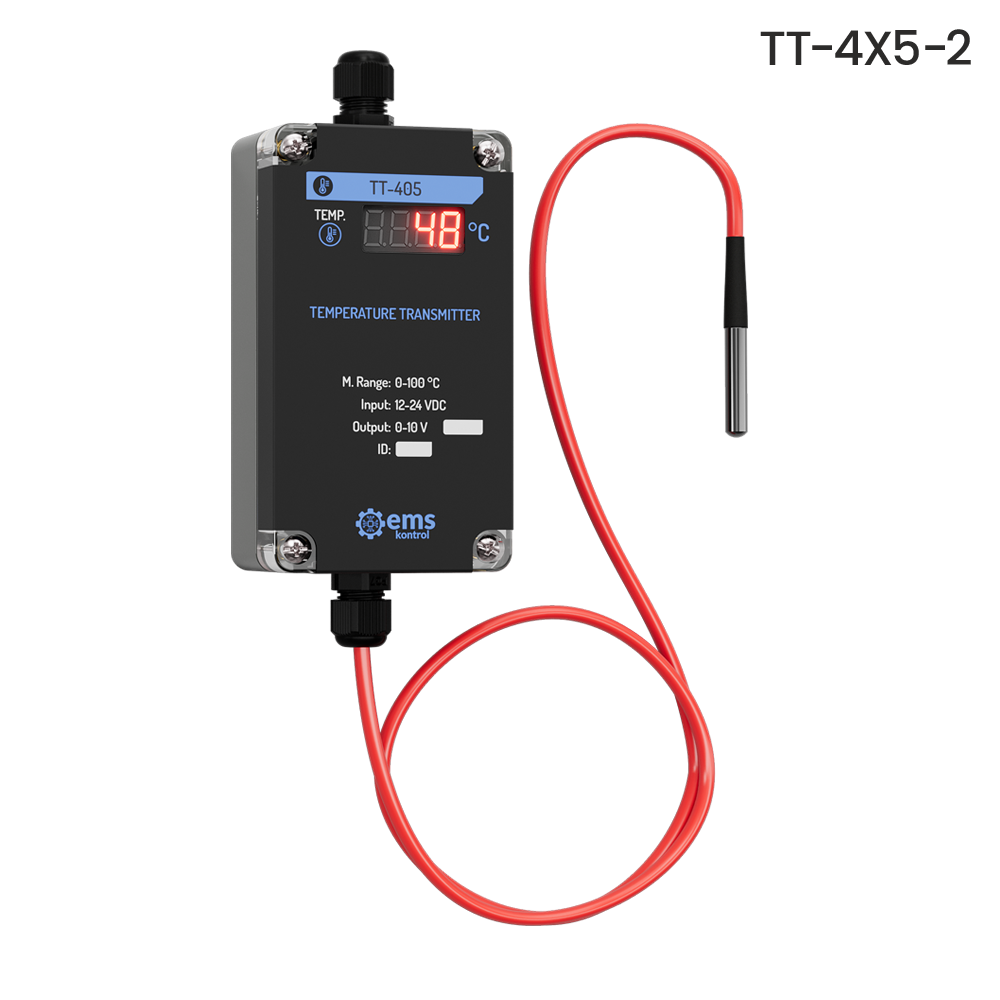

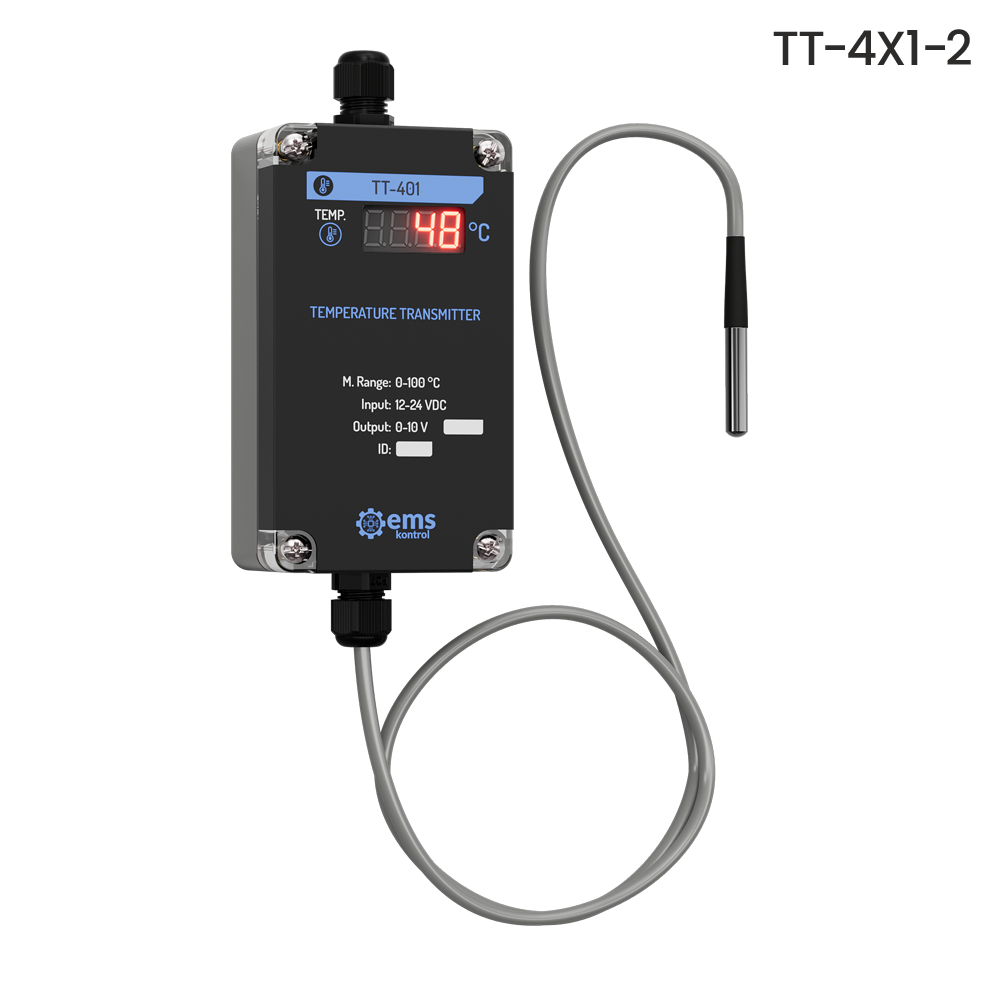

| NTC-10K Probe Cable | PT-1000 1m Probe Cable | ||||
| Product Code | Sensor Type |
|---|---|
| TT-4X1 | NTC 10 K |
| TT-4X5 | PT-1000 |
| Product Code | Output Signal |
|---|---|
| TT-40X | 0-10 V / 2-10 V / 0-3 V |
| TT-44X | 4-20 mA / 0-20 mA |
| TT-46X | Modbus RTU |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 187 mm | 65 mm | 40 mm | 115 mm | 50 mm | 6 mm |
