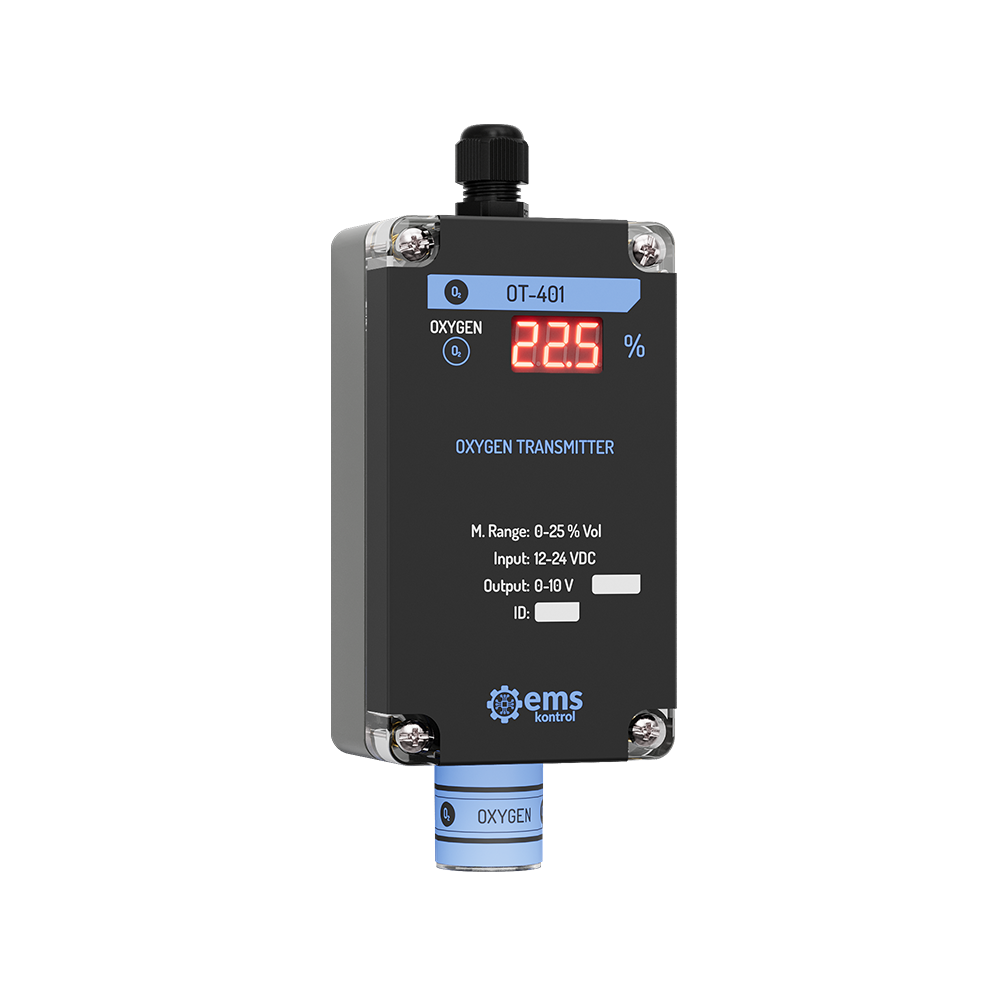

OT-4XX OXYGEN (O₂) TRANSMITTER WITH DISPLAY
Gas Group SensorsIt precisely measures the oxygen value in its environment and converts it into output signals in desired standards (such as 0-10V, 4-20mA, Modbus RTU).
- Accurate and Precise Measuring
- Analog Output
- Durable and Handy Design
- 2 Years Sensor Operating Life
- Easy Replaceable Sensor
- Easy Assembling
- IP 67 Plastic Case (Not Including Sensor)
| Product Informations | |
|---|---|
| Product Name | OT-4XX Oxygen (O₂) Transmitter with Display |
| Input | 12-24 V DC |
| Output | 0-10 V / 4-20 mA / Modbus RTU |
| Sensor Op. Life | 2 Years |
| Sensor | Oxygen |
|---|---|
| Measuring Range | 0 – 25 % VOL |
| Sensitivity | ± 0,1 % VOL |
| Accuracy | ± 1 % VOL |
| Product Code | Output Signal |
|---|---|
| OT-401 | 0-10 V |
| OT-441 | 4-20 mA |
| OT-461 | Modbus RTU |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 161 mm | 65 mm | 40 mm | 115 mm | 24 mm | 24 mm |
