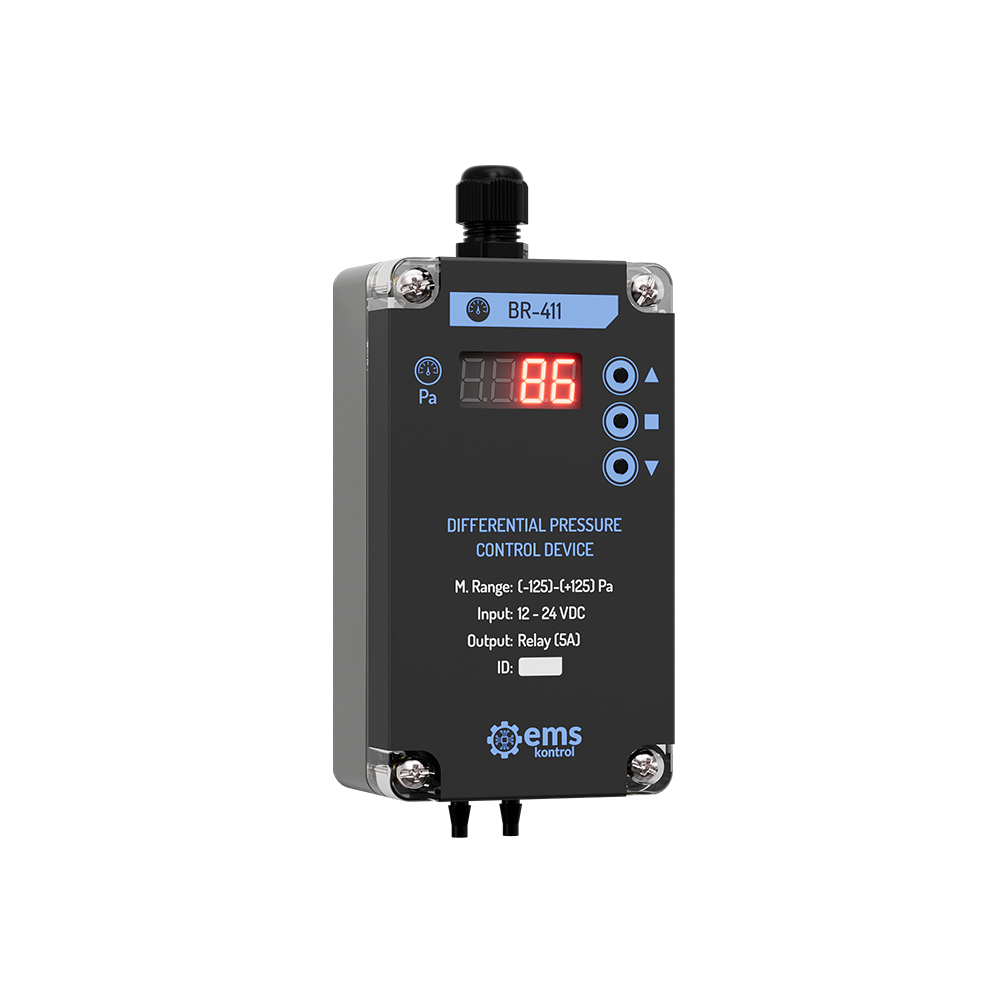

BR-4X1 / 4X2 DIFFERENTIAL PRESSURE CONTROL DEVICE
Sensors With RelayDifferential pressure control device allows you to control the pressure devices you are using within the desired value range by precisely measuring the pressure difference between two points.
- Accurate and Precise Measuring
- 1 Relay Output
- Buzzer (Optional)
- Durable and Handy Design
- Long Operating Life
- Easy Assembling
- Adjustable Relay Sensitivity
| Product Informations | |
|---|---|
| Product Name | BR-4X1 / 4X2 Differential Pressure Control Device |
| Input | 12-24 V DC |
| Output | 0-10 V / 2-10 V / 0-3 V / 4-20 mA / 0-20 mA / Relay(5A) |
| Product Code | M. Range | Sensitivity | Accuracy |
|---|---|---|---|
| BR-411 | -125…+125 Pa | ± 1 Pa | ± % 3 |
| BR-412 | -500…+500 Pa | ± 1 Pa | ± % 3 |
| Product Code | Output Range | Sensitivity | Accuracy |
|---|---|---|---|
| BR-401 / 441 | 0-50 Pa / 0-100 Pa / -125…+125 Pa | ± 1 Pa | ± % 3 |
| BR-402 / 442 | 0-250 Pa / 0-500 Pa / -500…+500 Pa | ± 1 Pa | ± % 3 |
| Product Code | Output Signal |
|---|---|
| BR-411 / 412 | Relay (5A) |
| BR-401 / 402 | 0-10 V / Relay (5A) 2-10 V / Relay (5A) 0-3 V / Relay (5A) |
| BR-441 / 442 | 4-20 mA / Relay (5A) 0-20 mA / Relay (5A) |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 147 mm | 65 mm | 40 mm | 115 mm | 10 mm | 12 mm |
