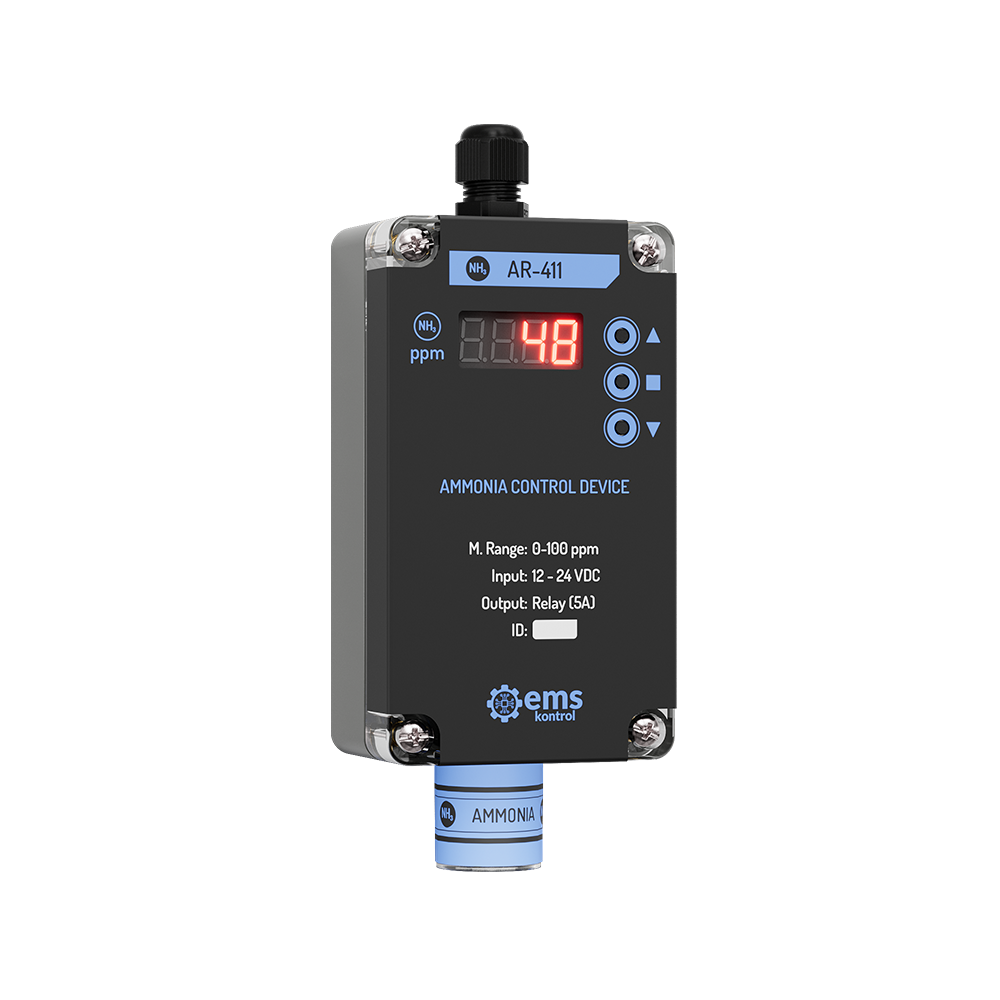

AR-4X1 AMMONIA (NH₃) CONTROL DEVICE
Sensors With RelayAmmonia control device allows you to control the ammonia devices you are using within the desired value range by precisely measuring the ammonia values in the environment.
- Accurate and Precise Measuring
- 1 Relay Output
- Buzzer (Optional)
- 2 Years Sensor Operating Life
- Easy Replaceable Sensor
- Easy Assembling
- Adjustable Relay Sensitivity
| Product Informations | |
|---|---|
| Product Name | AR-4X1 Ammonia (NH₃) Control Device |
| Input | 12-24 V DC |
| Output | 0-10 V / 2-10 V / 0-3 V / 4-20 mA / 0-20 mA / Relay(5A) |
| Product Code | M. Range | Sensitivity | Accuracy |
|---|---|---|---|
| AR-411 | 0-100 ppm | ± 1 ppm | ± 2 ppm + %2 |
| Product Code | Output Range | Sensitivity | Accuracy |
|---|---|---|---|
| AR-401 / 441 | 0-100 ppm | ± 1 ppm | ± 2 ppm + %2 |
| Product Code | Output Signal |
|---|---|
| AR-411 | Relay (5A) |
| AR-401 | 0-10 V / Relay (5A) 2-10 V / Relay (5A) 0-3 V / Relay (5A) |
| AR-441 | 4-20 mA / Relay (5A) 0-20 mA / Relay (5A) |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 161 mm | 65 mm | 40 mm | 115 mm | 24 mm | 24 mm |
