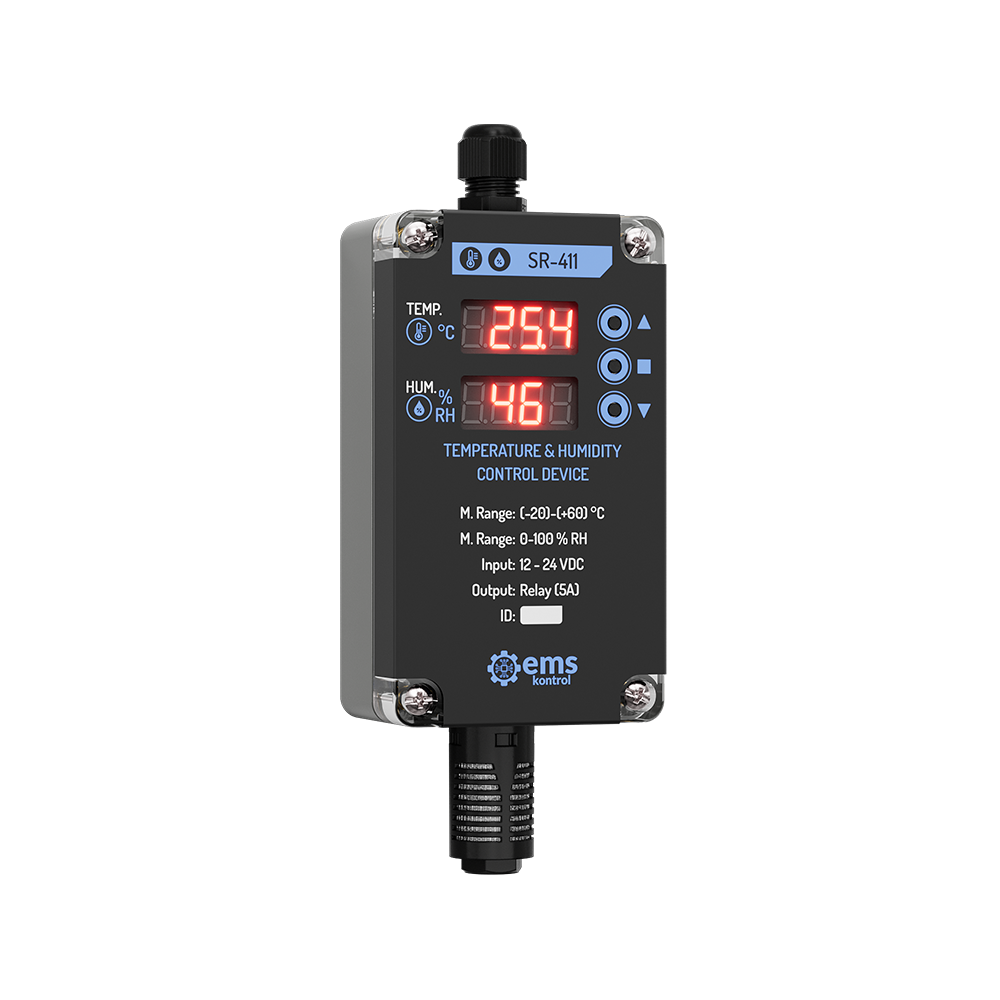

SR-4XX TEMPERATURE & HUMIDITY CONTROL DEVICE
Sensors With RelayTemperature and humidity control device allows you to control the temperature and humidity devices you are using within the desired value range by precisely measuring the temperature and relative humidity values in the environment.
- Accurate and Precise Measuring
- 2 Relay Outputs
- Buzzer (Optional)
- Long Operating Life
- Cleanable Filter
- Easy Assembling
- Adjustable Relay Sensitivity
| Product Informations | |
|---|---|
| Product Name | SR-4XX Temperature and Humidity Control Device |
| Input | 12-24 V DC |
| Output | 0-10 V / 2-10 V / 0-3 V / 4-20 mA / 0-20 mA / Relay(5A) |
| Product Code | M. Range | Sensitivity | Accuracy |
|---|---|---|---|
| SR-411 | -20…+60 °C // 0-100 % RH | ± 0,1 °C // ± 1 % RH | ± 0,3 °C // ± 3 % RH |
| Product Code | Output Range | Sensitivity | Accuracy |
|---|---|---|---|
| SR-401 / 441 | 0-50 °C / -20…+80 °C // 0-100 % RH | ± 0,1 °C // ± 1 % RH | ± 0,3 °C // ± 3 % RH |
| Product Code | Output Signal |
|---|---|
| SR-411 | Relay (5A) |
| SR-401 | 0-10 V / Relay (5A) 2-10 V / Relay (5A) 0-3 V / Relay (5A) |
| SR-441 | 4-20 mA / Relay (5A) 0-20 mA / Relay (5A) |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 172 mm | 65 mm | 40 mm | 115 mm | 36 mm | 20 mm |
