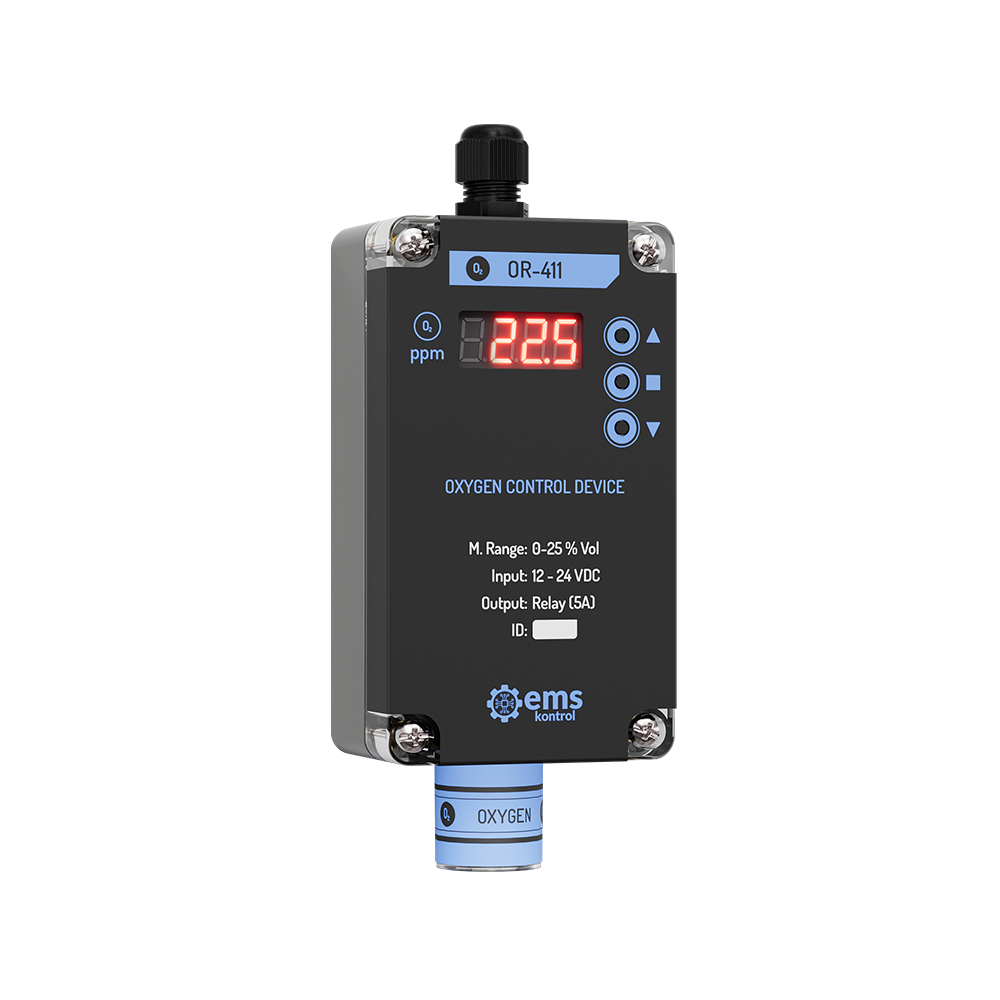

OR-4X1 OXYGEN (O₂) CONTROL DEVICE
Sensors With RelayOxygen control device allows you to control the oxygen devices you are using within the desired value range by precisely measuring the oxygen values in the environment.
- Accurate and Precise Measuring
- 1 Relay Output
- Buzzer (Optional)
- 2 Years Sensor Operating Life
- Easy Replaceable Sensor
- Easy Assembling
- Adjustable Relay Sensitivity
| Product Informations | |
|---|---|
| Product Name | OR-4X1 Oxygen (O₂) Control Device |
| Input | 12-24 V DC |
| Output | 0-10 V / 2-10 V / 0-3 V / 4-20 mA / 0-20 mA / Relay(5A) |
| Product Code | M. Range | Sensitivity | Accuracy |
|---|---|---|---|
| OR-411 | 0-25 % vol | ± 0,1 % vol | ± 1 % vol |
| Product Code | Output Range | Sensitivity | Accuracy |
|---|---|---|---|
| OR-401 / 441 | 0-25 % vol | ± 0,1 % vol | ± 1 % vol |
| Product Code | Output Signal |
|---|---|
| OR-411 | Relay (5A) |
| OR-401 | 0-10 V / Relay (5A) 2-10 V / Relay (5A) 0-3 V / Relay (5A) |
| OR-441 | 4-20 mA / Relay (5A) 0-20 mA / Relay (5A) |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 161 mm | 65 mm | 40 mm | 115 mm | 24 mm | 24 mm |
