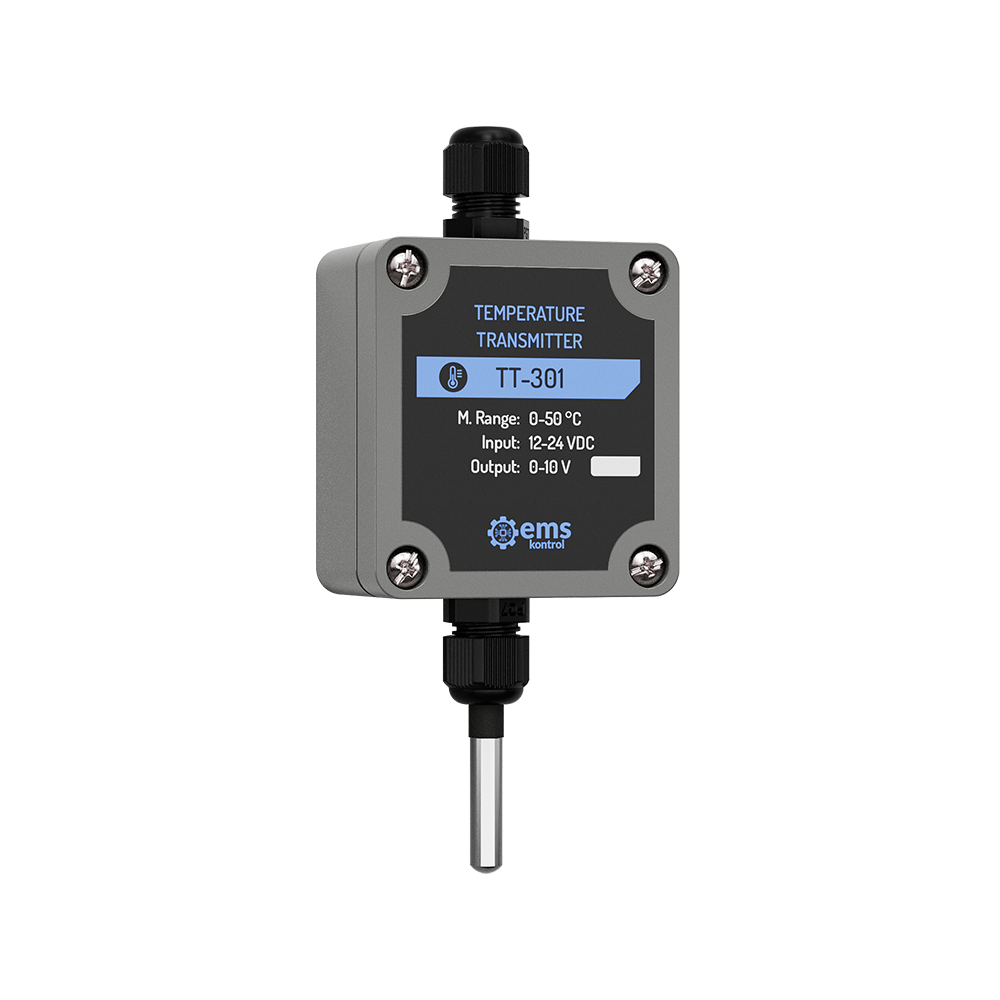

TT-3XX TEMPERATURE TRANSMITTER
Temperature SensorsIt precisely measures the temperature values in the environment and convert it into output signals in desired standards (0-10V, 4-20mA, Modbus RTU).
- Accurate and Precise Measuring
- Analog Output
- Long Operating Life
- Easy Assembling
- IP 67 Plastic Case
** Sensor cable lenght can be changed (0-10m) according to demand.
** Metal probe lenght can be selected as 50mm or 100mm.
| Product Informations | |
|---|---|
| Product Name | TT-3XX Temperature Transmitter |
| Input | 12-24 V DC |
| Product Code | O. Range | Sensitivity | Accuracy |
|---|---|---|---|
| TT-3X1 | 0–50 °C / 0–100 °C / (-20)–(+80) °C | ± 0,1 °C | ± 0,5 °C |

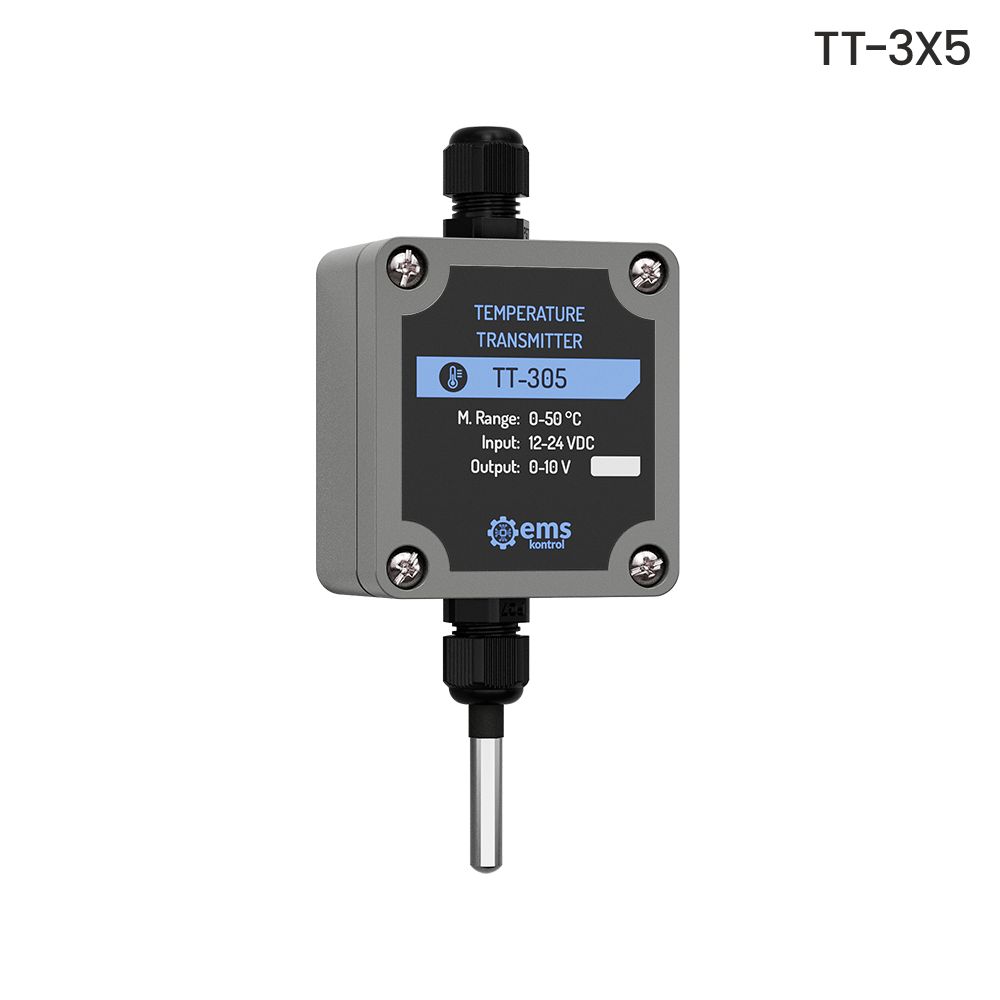

| TT-3X5 | 0–50 °C / 0–100 °C / (-20)–(+80) °C / (-40)–(+150) °C | ± 0,1 °C | ± 0,5 °C |
| Model Ürün Kodları | |||||
|---|---|---|---|---|---|
| 3X1-2 | 3X5-2 | ||||
| NTC-10K Probe Cable | PT-1000 Probe Cable | ||||
| Product Code | Sensor Type |
|---|---|
| TT-3X1 | NTC 10 K |
| TT-3X5 | PT-1000 |
| Product Code | Output Signal |
|---|---|
| TT-30X | 0-10 V |
| TT-34X | 4-20 mA |
| TT-36X | Modbus RTU |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 135 mm | 58 mm | 35 mm | 64 mm | 50 mm | 6 mm |
