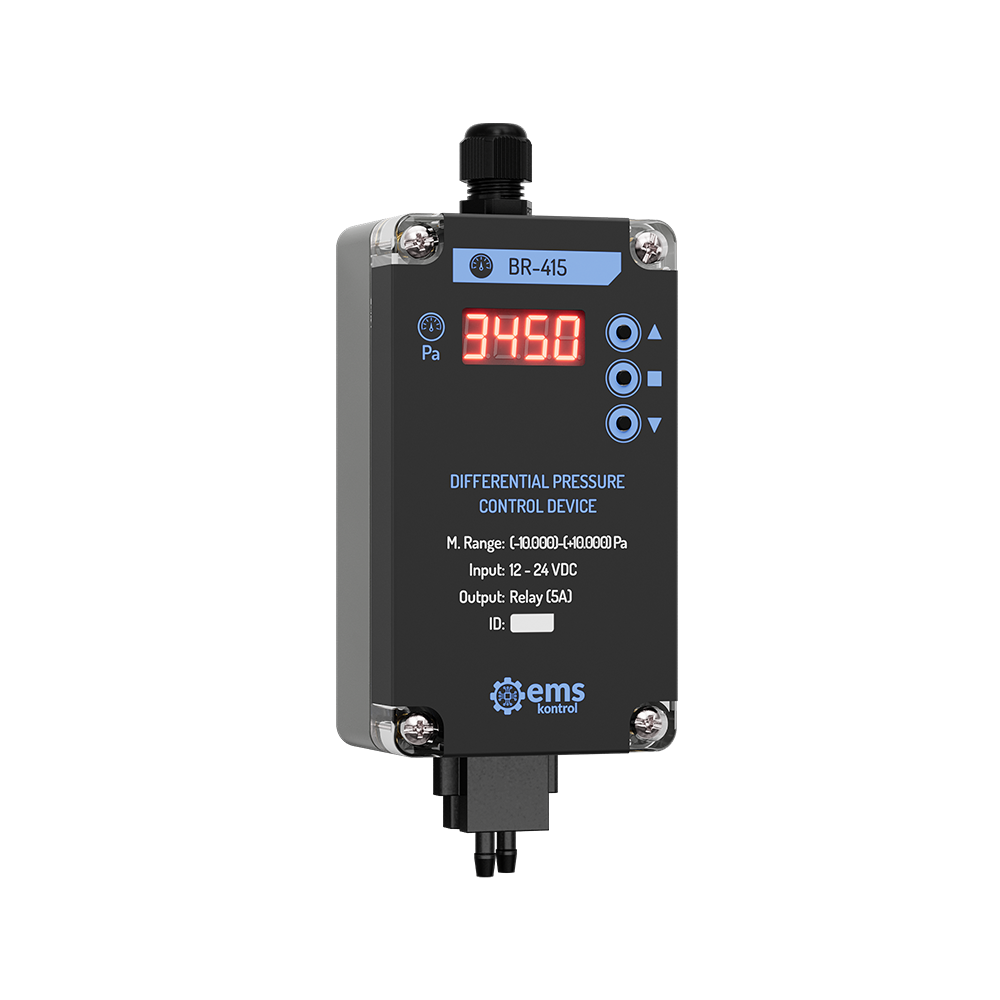

BR-4X4 / 4X5 DIFFERENTIAL PRESSURE CONTROL DEVICE
Sensors With RelayDifferential pressure control device allows you to control the pressure devices you are using within the desired value range by precisely measuring the pressure difference between two points.
- Accurate and Precise Measuring
- 1 Relay Output
- Buzzer (Optional)
- Durable and Handy Design
- Long Operating Life
- Easy Assembling
- Adjustable Relay Sensitivity
| Product Informations | |
|---|---|
| Product Name | BR-4X4 / 4X5 Differential Pressure Control Device |
| Input | 12-24 V DC |
| Output | 0-10 V / 2-10 V / 0-3 V / 4-20 mA / 0-20 mA / Relay (5A) |
| Product Code | M. Range | Sensitivity | Accuracy |
|---|---|---|---|
| BR-414 | -1.000…+1.000 Pa | ± 10 Pa | ± % 0,5 |
| BR-415 | -10.000…+10.000 Pa | ± 10 Pa | ± % 0,5 |
| Product Code | Output Range | Sensitivity | Accuracy |
|---|---|---|---|
| BR-404 / 444 | 0-1.000 Pa / -1.000…+1.000 Pa | ± 10 Pa | ± % 0,5 |
| BR-405 / 445 | 0-5.000 Pa / 0-10.000 Pa -10.000…+10.000 Pa | ± 10 Pa | ± % 0,5 |
| Product Code | Output Signal |
|---|---|
| BR-414 / 415 | Relay (5A) |
| BR-404 / 405 | 0-10 V / Relay (5A) 2-10 V / Relay (5A) 0-3 V / Relay (5A) |
| BR-444 / 445 | 4-20 mA / Relay (5A) 0-20 mA / Relay (5A) |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 165 mm | 65 mm | 40 mm | 115 mm | 28 mm | 28 mm |
