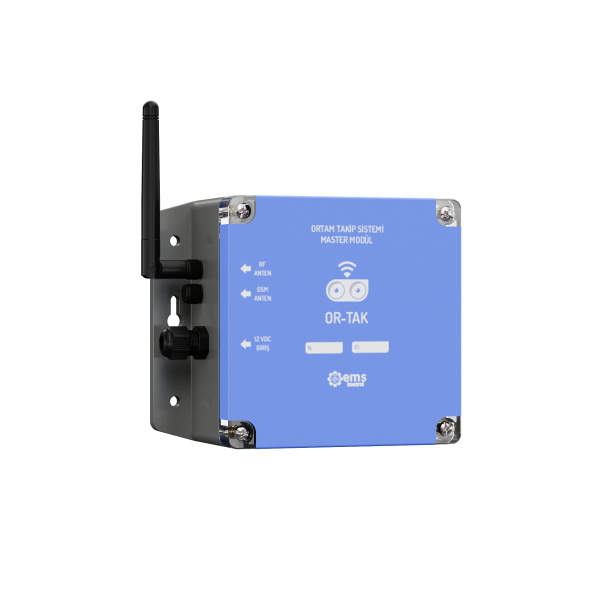

MM-01X LARGE MASTER MODULE
Or-TakThe central device collects the information from the sensors and allows you to see them through the application.
- Easy Installation
- WIFI / GSM Communication
- RF Communication
- Long Communication Range
- IP 67 Plastik Case
- Phase Information (Optional)
| Product Informations | |
|---|---|
| Product Name | MM-01X Large Master Module |
| Input | 12 V DC |
| Communication | 433 Mhz RF Wireless Communication Wifi 2.4 Ghz GSM M2M 2G |
| Sensor | Option |
|---|---|
| MM-010 | GSM |
| MM-011 | GSM + Phase Information |
| MM-012 | Wi-Fi |

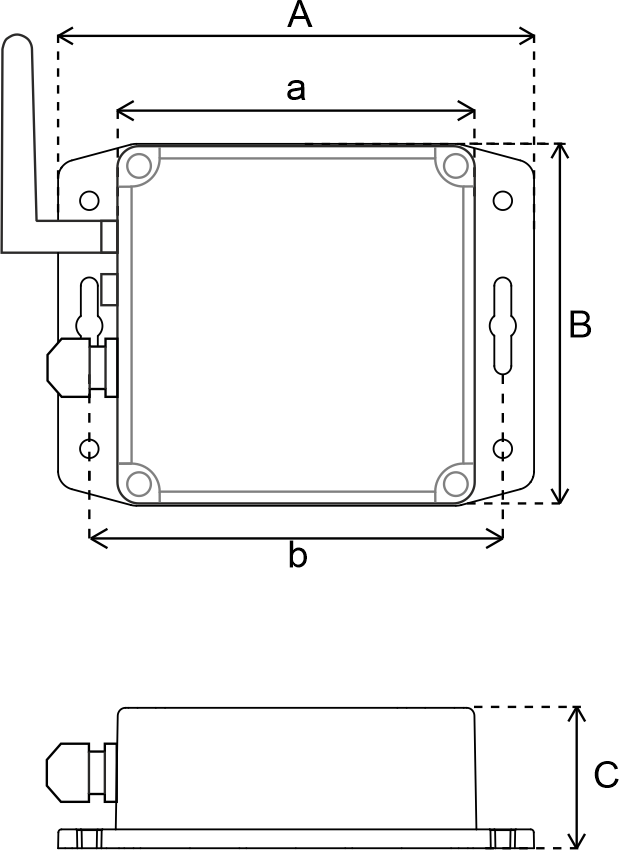

| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | |
| 160 mm | 120 mm | 66 mm | 120 mm | 138 mm | |
