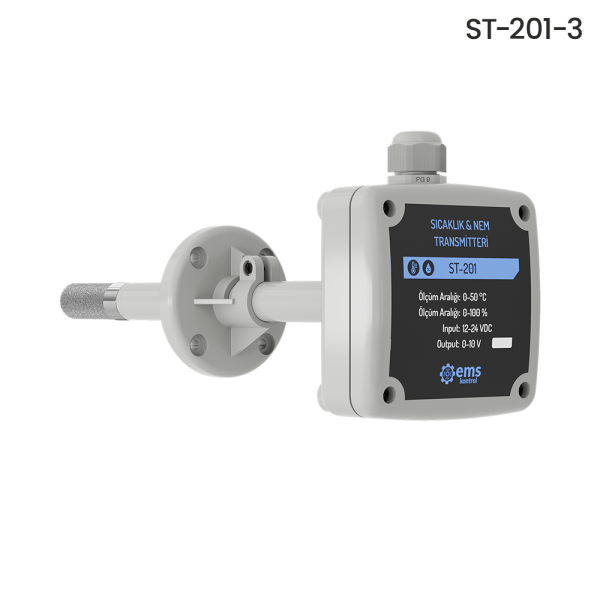

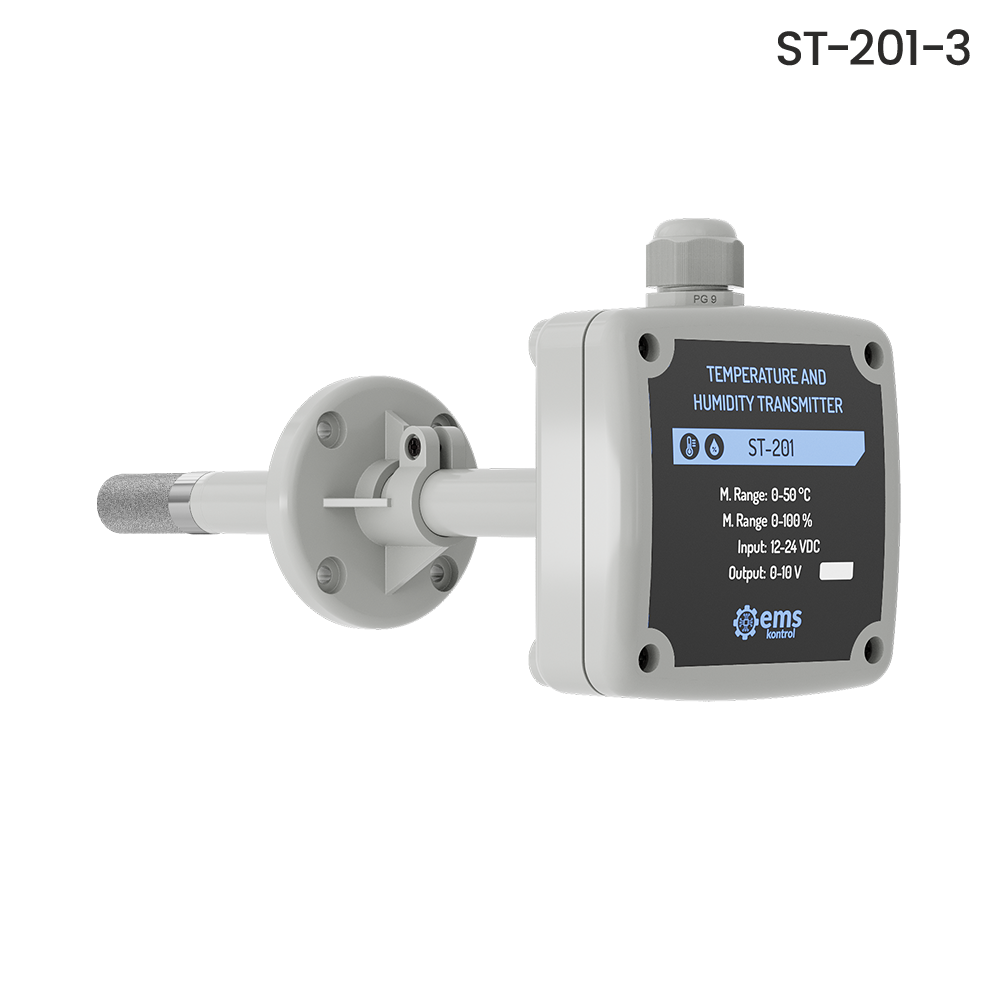

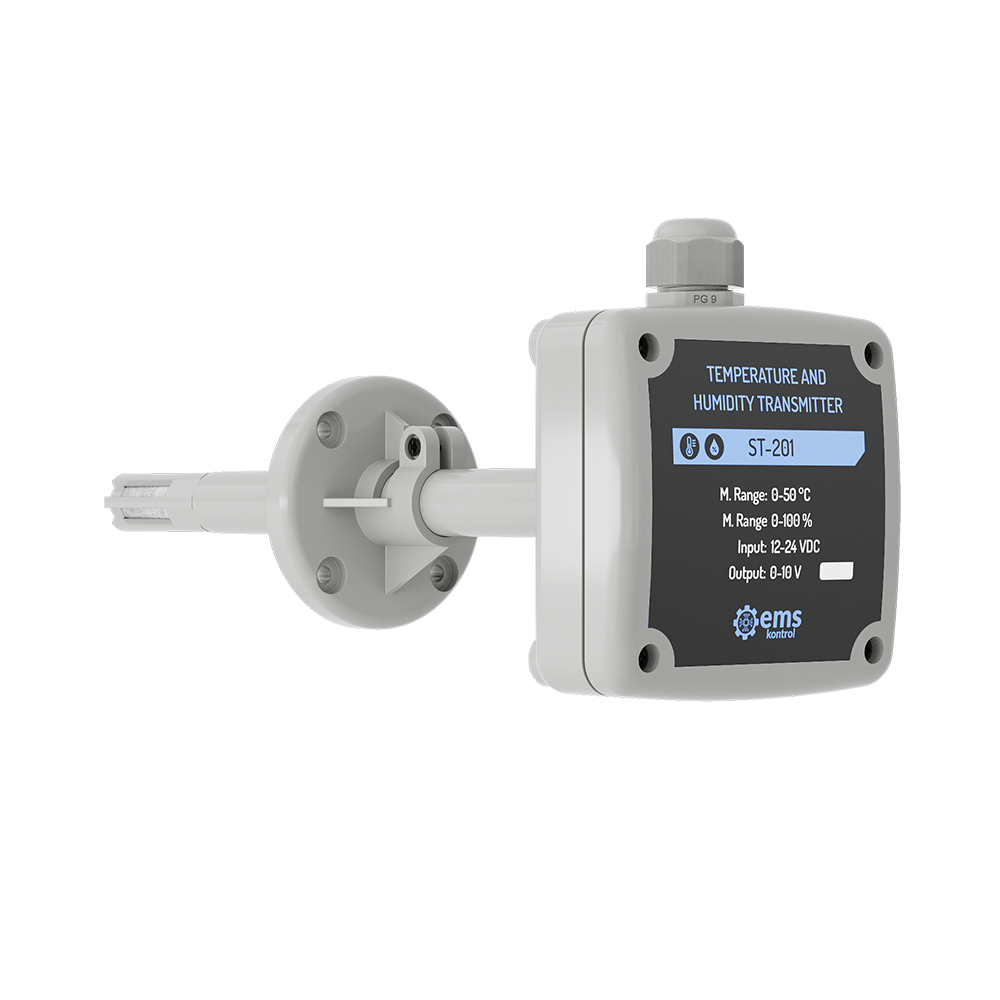

ST-2XX TEMPERATURE & HUMIDITY DUCT TYPE TRANSMITTER
Humidity SensorsTemperature SensorsIt precisely measures the temperature and relative humidity values in the environment and convert it into output signals in desired standards (0-10V, 4-20mA, Modbus RTU).
- Accurate and Precise Measuring
- Analog Output
- Long Operating Life
- Cleanable Filter
- Easy Assembling
- IP 67 Plastic Case (Not Including Sensor)
| Product Informations | |
|---|---|
| Product Name | ST-2XX Temperature and Humidity Duct Type Transmitter |
| Input | 12-24 V DC |
| Output | 0-10 V / 4-20 mA / Modbus RTU |
| Sensor | Temperature | Humidity |
|---|---|---|
| Measuring Range | 0 – 50 °C (-20) – (+80) °C | 0-100% |
| Sensitivity | ± 0,1 °C | ± % 1 |
| Accuracy | ± 0,3 °C | ± % 3 |
| Product Code | Output Signal |
|---|---|
| ST-201 | 0-10 V |
| ST-241 | 4-20 mA |
| ST-261 | Modbus RTU |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 102 mm | 80 mm | 229 mm | 80 mm | 15 mm | 191 mm |
