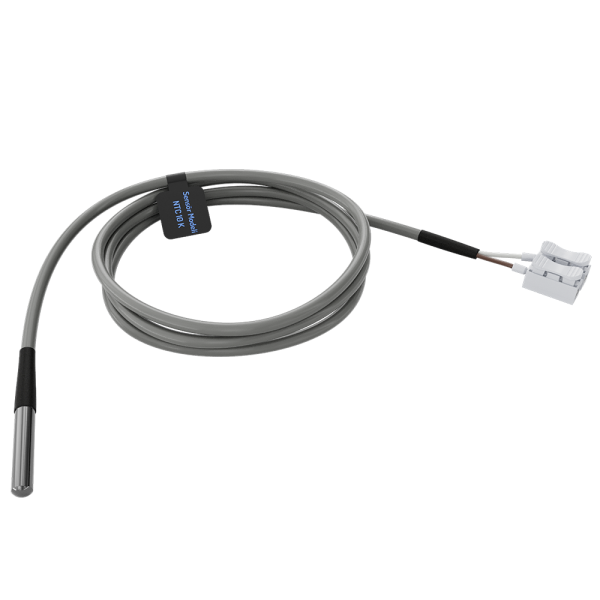

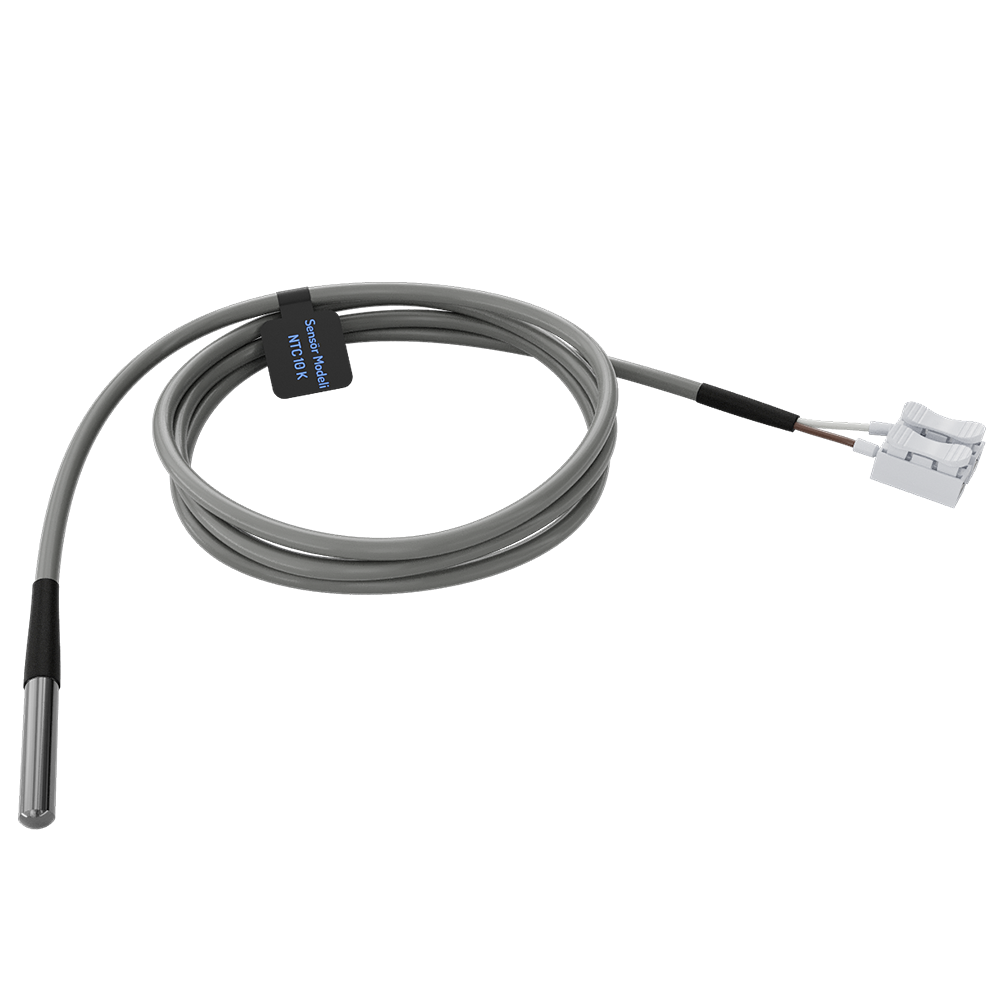

TS-1XX TEMPERATURE SENSOR
Temperature SensorsIt precisely measures the temperature values in the environment;
- Accurate and Precise Measuring
- Long Operating Life
- Easy Assembling
** Sensor cable length can be changed (0-10m) according to demand.
** Metal Probe length can be selected as 50mm or 100mm.
| Product Informations | |
|---|---|
| Product Name | TS-1XX Temperature Sensor |
| Sensor Type | NTC-10K / NTC-30K / PT-100 / PT-1000 |
| Product Code | Sensor Type |
|---|---|
| TS-110 | NTC-10K (Plastic Probe) |
| TS-111 | NTC-10K |
| TS-112 | NTC-30K |
| TS-121 | PT-100 |
| TS-131 | PT-1000 |
| Sensor Type | Measuring Range | Beta Value | Sensitivity | Accuracy |
|---|---|---|---|---|
| NTC-10K | (-40)–(+80)°C | B25/85 – 3435K | ± 0,1 °C | ± 0,5 °C |
| NTC-30K | (-40)–(+80)°C | B0/50 – 3892K | ± 0,1 °C | ± 0,5 °C |
| Sensor Type | Measuring Range | Cable Cross Secton | Senstivity | Accuracy |
|---|---|---|---|---|
| PT-100 | (-50)–(+200)°C | 5×50 + 1 m | ± 0,1 °C | ± 0,5 °C |
| PT-1000 | (-50)–(+200)°C | 5×50 + 1 m | ± 0,1 °C | ± 0,1 °C |
