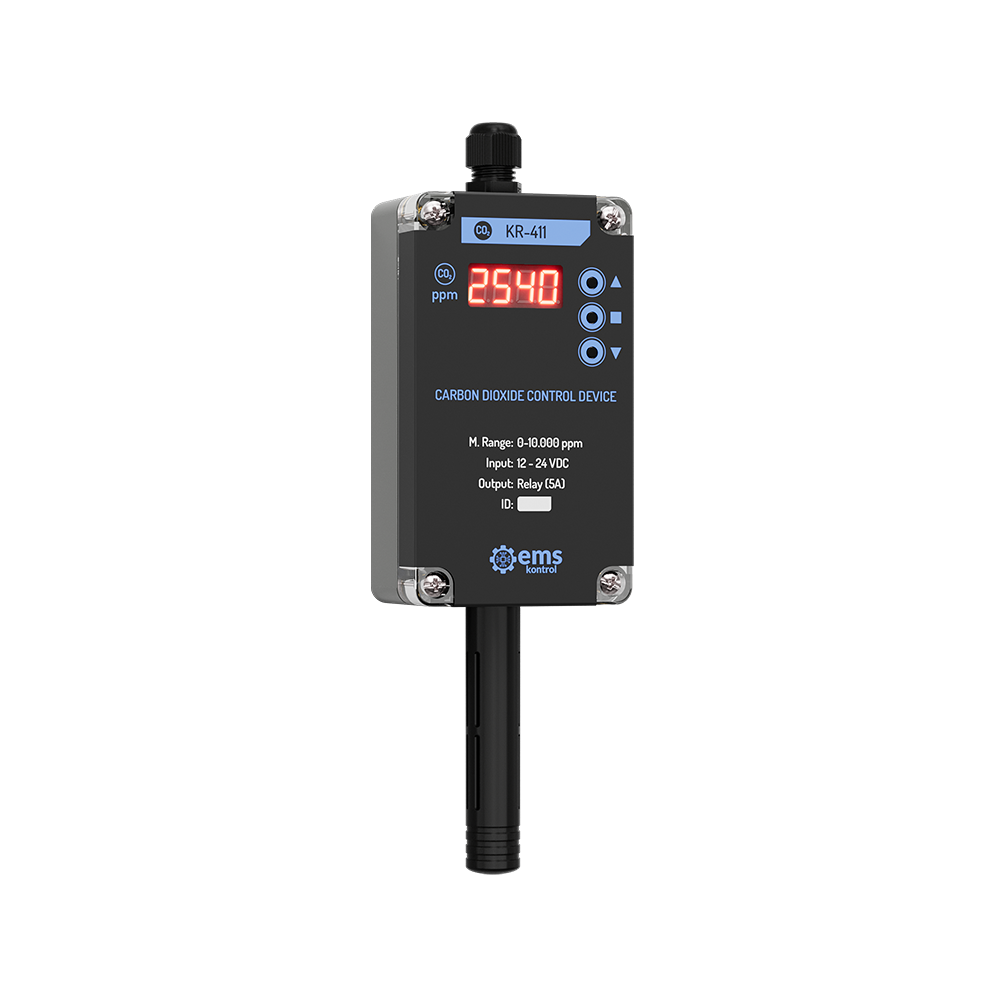

KR-4X1 CARBON DIOXIDE CONTROL DEVICE
Sensors With RelayCarbon dioxide control device allows you to control the carbon dioxide devices you are using within the desired value range by precisely measuring the carbon dioxide values in the environment.
- Accurate and Precise Measuring
- 1 Relay Output
- Buzzer (Optional)
- Long Operating Life
- Easy Assembling
- Adjustable Relay Sensitivity
| Product Informations | |
|---|---|
| Product Name | KR-4X1 Carbon Dioxide (CO₂) Control Device |
| Input | 12-24 V DC |
| Output | 0-10 V / 2-10 V / 0-3 V / 4-20 mA / 0-20 mA / Relay(5A) |
| Product Code | M. Range | Sensitivity | Accuracy |
|---|---|---|---|
| KR-411 | 0-10.000 ppm | ± 10 ppm | ± 50 ppm + %2 |
| Product Code | Output Range | Sensitivity | Accuracy |
|---|---|---|---|
| KR-401 / 441 | 0-5.000 ppm / 0-10.000 ppm | ± 10 ppm | ± 50 ppm + %2 |
| Product Code | Output Signal |
|---|---|
| KR-411 | Relay (5A) |
| KR-401 | 0-10 V / Relay (5A) 2-10 V / Relay (5A) 0-3 V / Relay (5A) |
| KR-441 | 4-20 mA / Relay (5A) 0-20 mA / Relay (5A) |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 215 mm | 65 mm | 40 mm | 115 mm | 78 mm | 16 mm |
