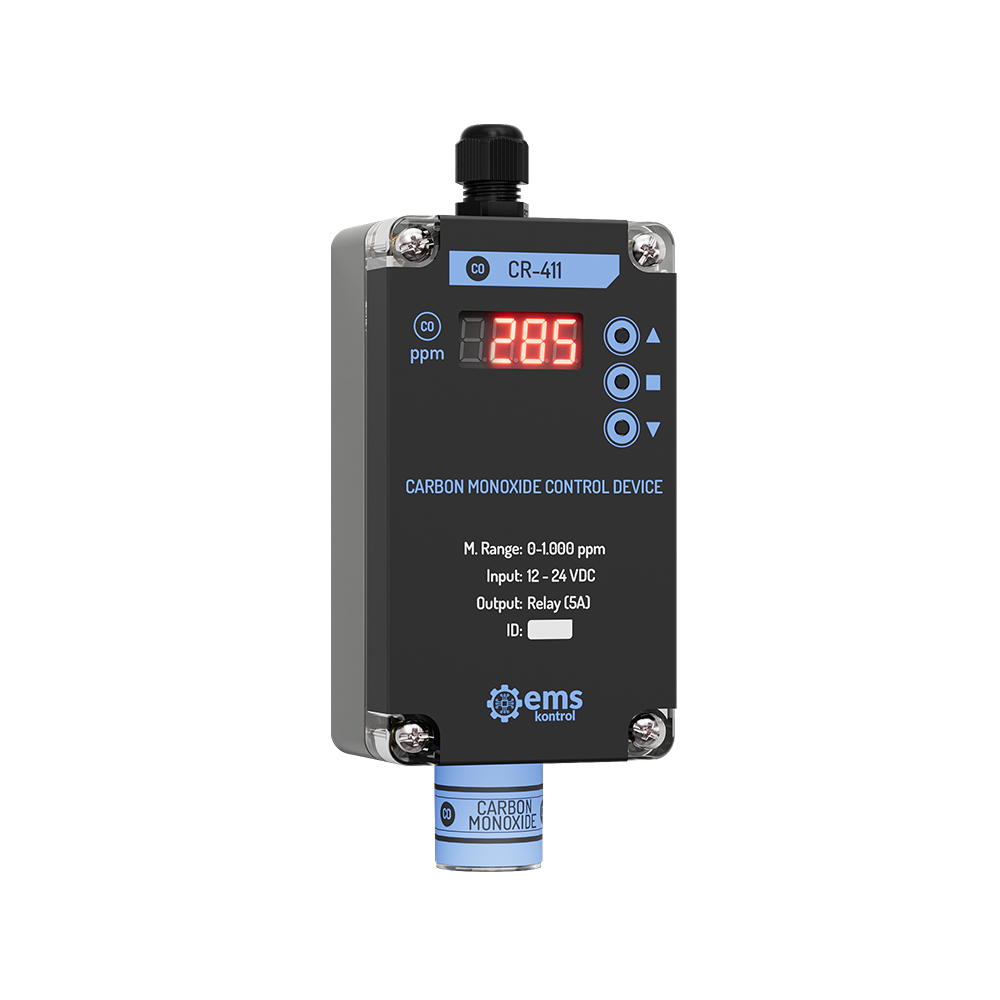

CR-411 CARBON MONOXIDE (CO) CONTROL DEVICE
Sensors With RelayCarbon monoxide control device allows you to control the carbon monoxide devices you are using within the desired value range by precisely measuring the carbon monoxide values in the environment.
- Accurate and Precise Measuring
- 1 Relay Output
- Buzzer (Optional)
- 2 Years Sensor Operating Life
- Easy Replaceable Sensor
- Easy Assembling
- Adjustable Relay Sensitivity
| Product Informations | |
|---|---|
| Product Name | CR-411 Carbon Monoxide (CO) Control Device |
| Input | 12-24 V DC |
| Output | Relay (2A) |
| Sensor Op. Life | 2 Years |
| Sensor | Carbon Monoxide |
|---|---|
| Measuring Range | 0 – 1000 ppm |
| Sensitivity | ± 1 ppm |
| Accuracy | ± 5 ppm |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 161 mm | 65 mm | 40 mm | 115 mm | 24 mm | 24 mm |
