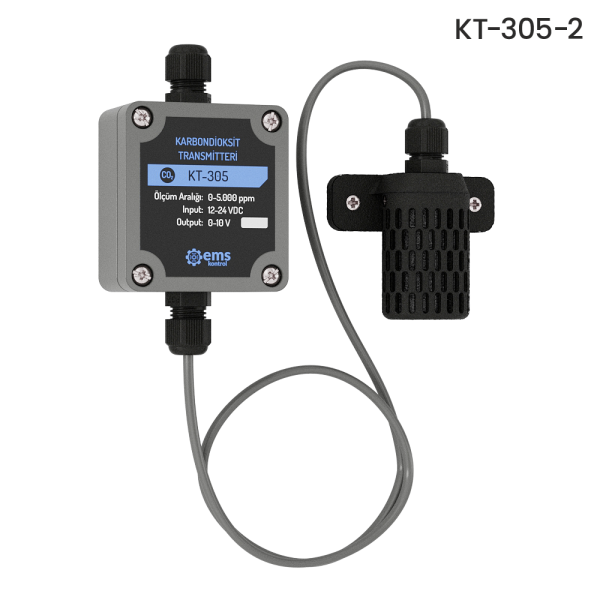

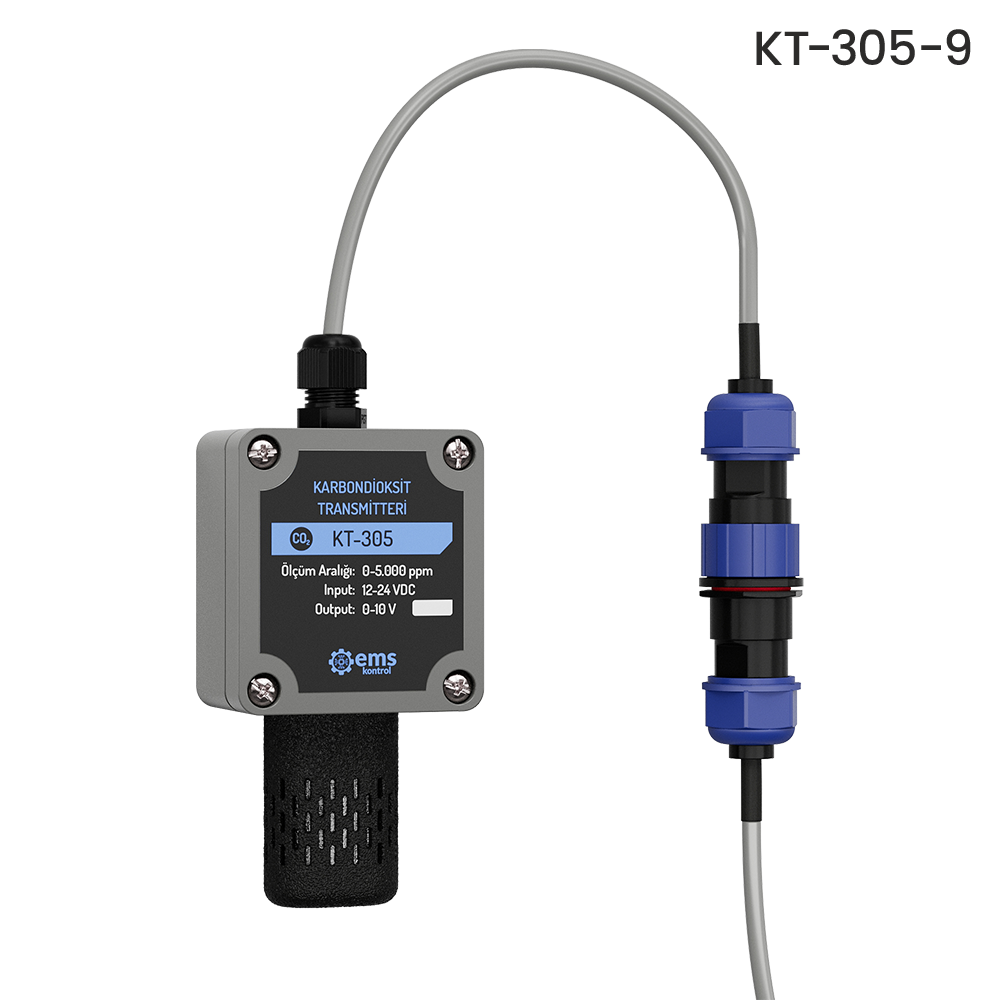

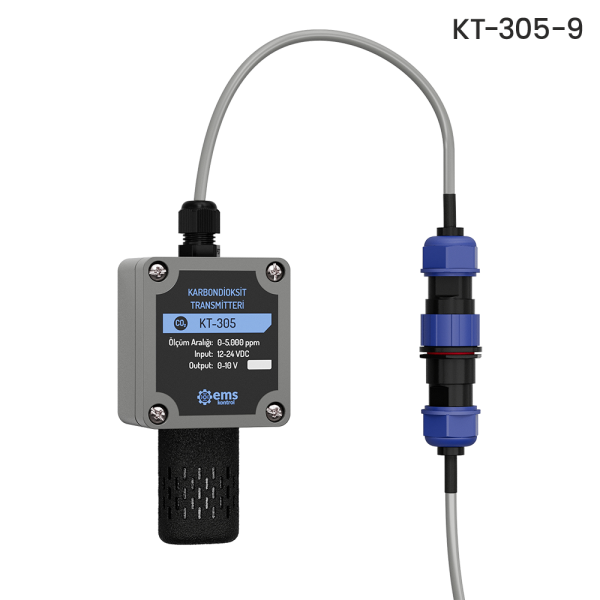

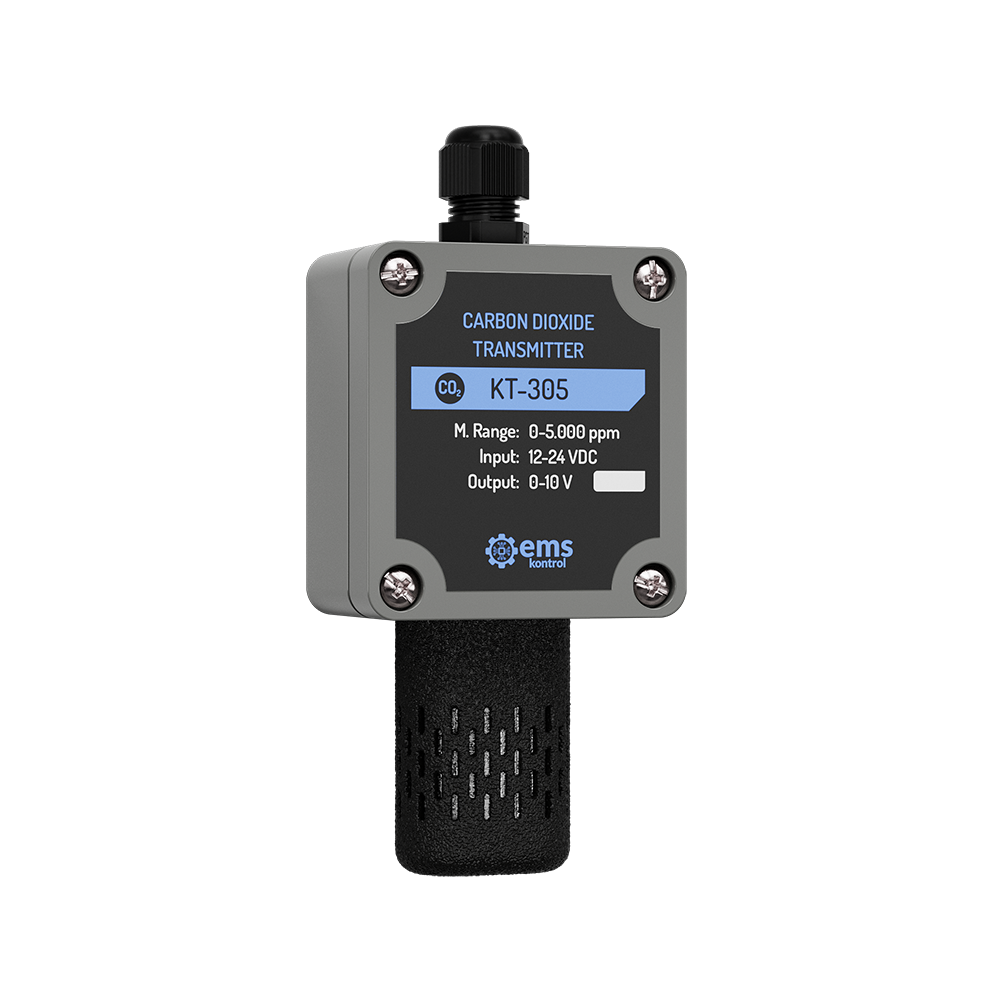

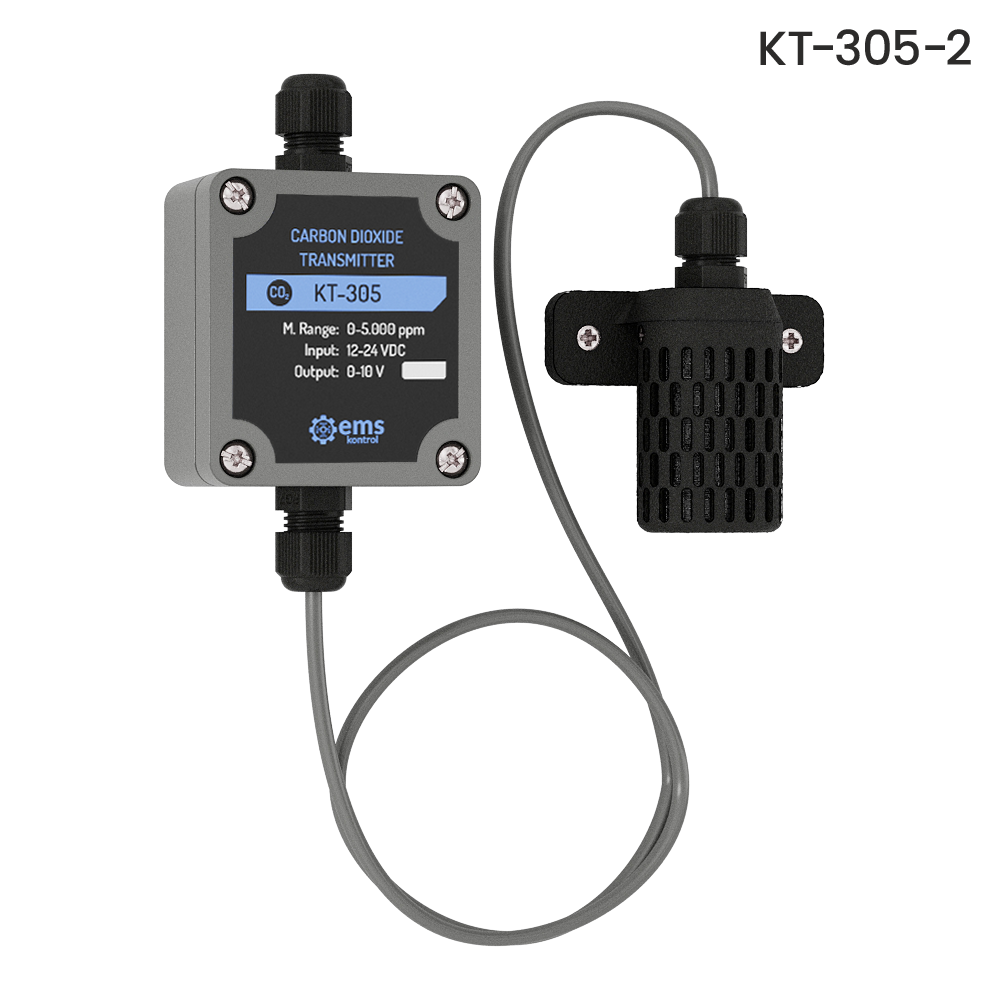

KT-3X5 CARBON DIOXIDE TRANSMITTER
Carbon Dioxide SensorsIt precisely measures the carbon dioxide value in its environment and converts it into output signals in desired standards (such as 0-10V, 4-20mA, Modbus RTU).
- Accurate and Precise Measuring
- Analog Output
- Durable and Handy Design
- Long Operating Life
- Cleanable Filter
- Easy Assembling
- IP 67 Plastic Case (Not Including Sensor)
| Product Informations | |
|---|---|
| Product Name | KT-3X5 Carbon Dioxide (CO₂) Transmitter |
| Input | 12-24 V DC |
| Output | 0-10 V / 4-20 mA / Modbus RTU |
| Sensor | Carbon Dioxide |
|---|---|
| Measuring Range | 0 – 5.000 ppm 0 – 10.000 ppm |
| Sensitivity | ± 10 ppm |
| Accuracy | ± 50 ppm + %2 |
| Product Code | Output Signal |
|---|---|
| KT-305 | 0-10 V |
| KT-345 | 4-20 mA |
| KT-365 | Modbus RTU |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 131 mm | 58 mm | 35 mm | 64 mm | 45 mm | 31 mm |
