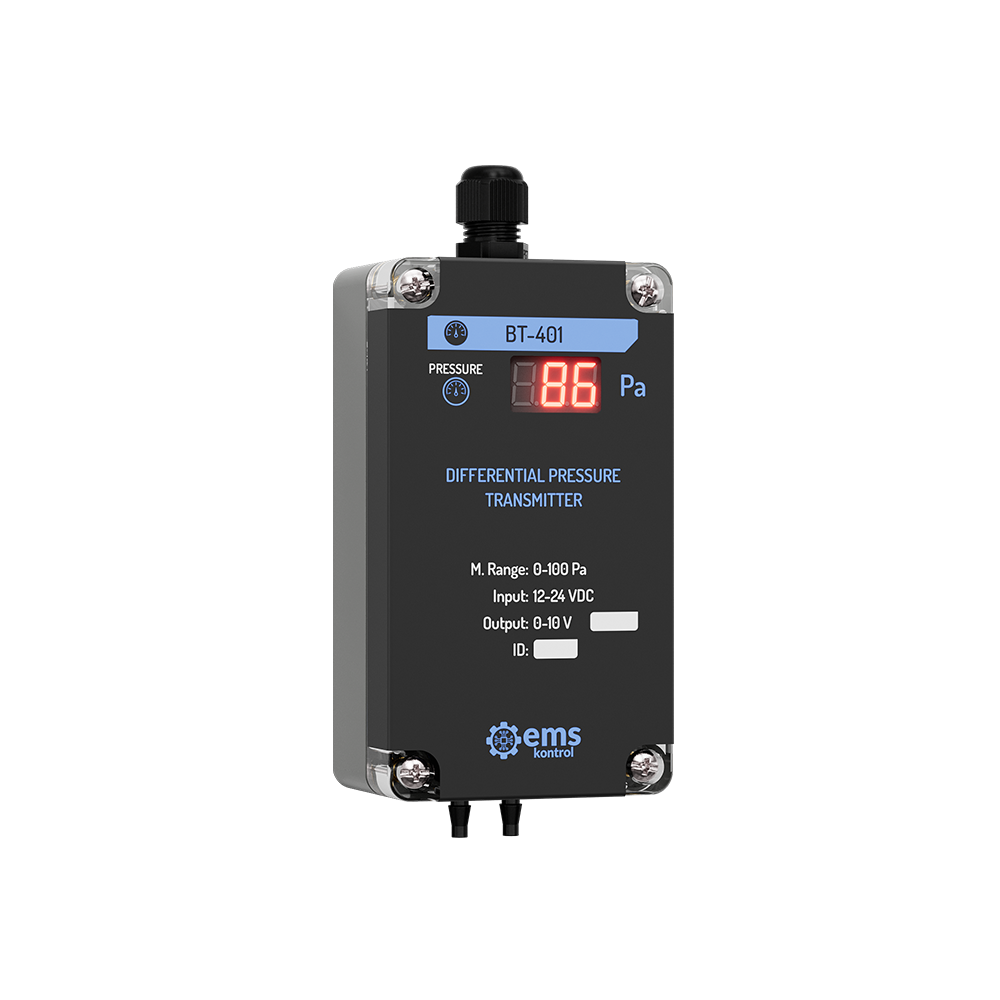

BT-4X1 DIFFERENTIAL PRESSURE TRANSMITTER WITH DISPLAY
Differential Pressure SensorsIt precisely measures the pressure difference between two points and converts it into output signals in desired standards (such as 0-10V, 4-20mA, Modbus RTU).
- Accurate and Precise Measuring
- Analog Outputs
- Durable and Handy Design
- Long Operating Life
- Easy Assembling
- IP 67 Plastic Case (Not Including Sensor)
| Product Informations | |
|---|---|
| Product Name | BT-4X1 Differential Pressure Transmitter with Display |
| Input | 12-24 V DC |
| Output | 0-10 V / 4-20 mA / Modbus RTU |
| Sensor | Pressure |
|---|---|
| Measuring Range | 0-100 Pa / (-500)-(+500) Pa 0-125 Pa / (-125)-(+125) Pa |
| Sensitivity | ± 1 Pa |
| Accuracy | ± % 3 |
| Product Code | Output Signal |
|---|---|
| BT-401 | 0-10 V |
| BT-441 | 4-20 mA |
| BT-461 | Modbus RTU |
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 147 mm | 65 mm | 40 mm | 115 mm | 10 mm | 12 mm |
