CT-4XX CARBON MONOXIDE (CO) TRANSMITTER WITH DISPLAY
Gas Group SensorsIt precisely measures the carbon monoxide value in its environment and converts it into output signals in desired standards (such as 0-10V, 4-20mA, Modbus RTU).
- Accurate and Precise Measuring
- Analog Output
- Durable and Handy Design
- 2 Years Sensor Operating Life
- Easy Replaceable Sensor
- Easy Assembling
- IP 67 Plastic Case (Not Including Sensor)
| Product Informations | |
|---|---|
| Product Name | CT-4XX Carbon Monoxide (CO) Transmitter with Display |
| Input | 12-24 V DC |
| Output | 0-10 V / 4-20 mA / Modbus RTU |
| Sensor Op. Life | 2 Years |
| Product Code | Output Signal |
|---|---|
| CT-401 | 0-10 V |
| CT-441 | 4-20 mA |
| CT-461 | Modbus RTU |
| Sensor | Measuring Range | Sensitivity | Accuracy |
|---|---|---|---|
| Carbon Monoxide | 0 – 1000 ppm | ± 1 ppm | ± 5 ppm |
| Model Product Codes | |||||
|---|---|---|---|---|---|
| 4X1-2 | 4X1-3 | ||||

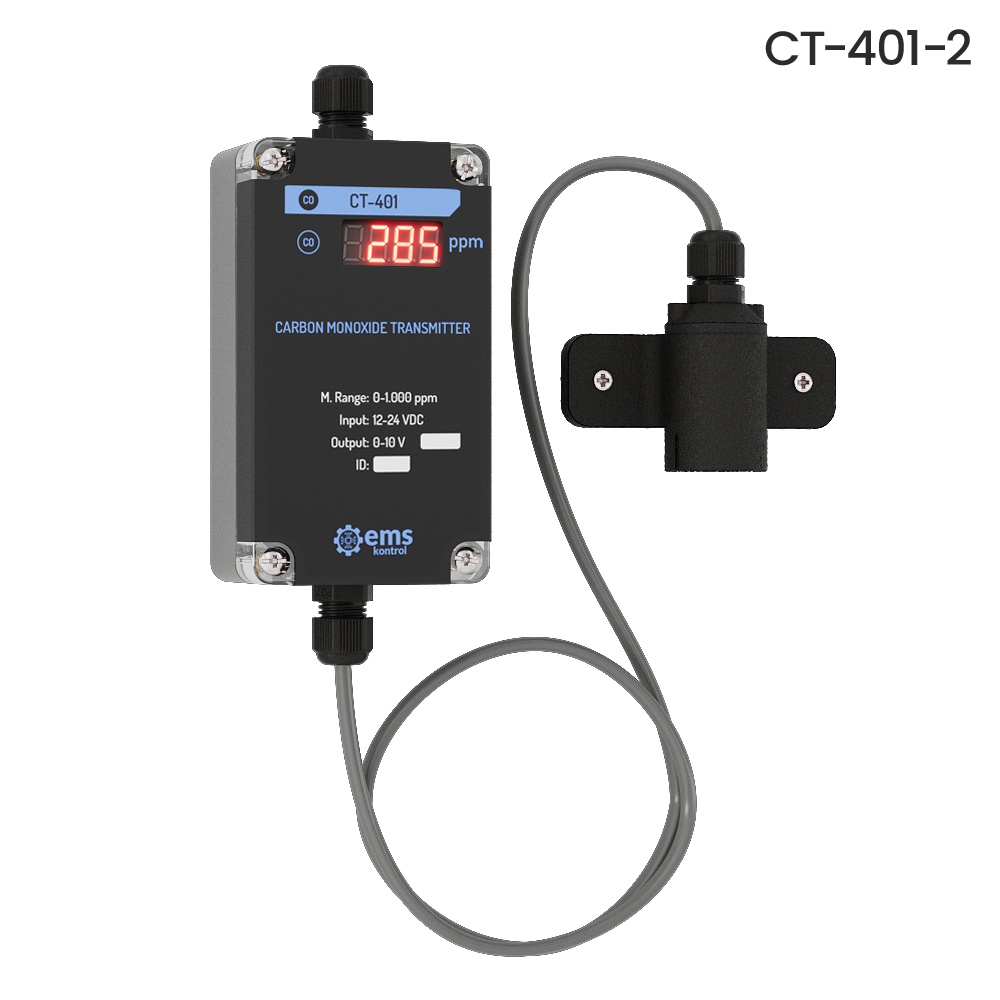

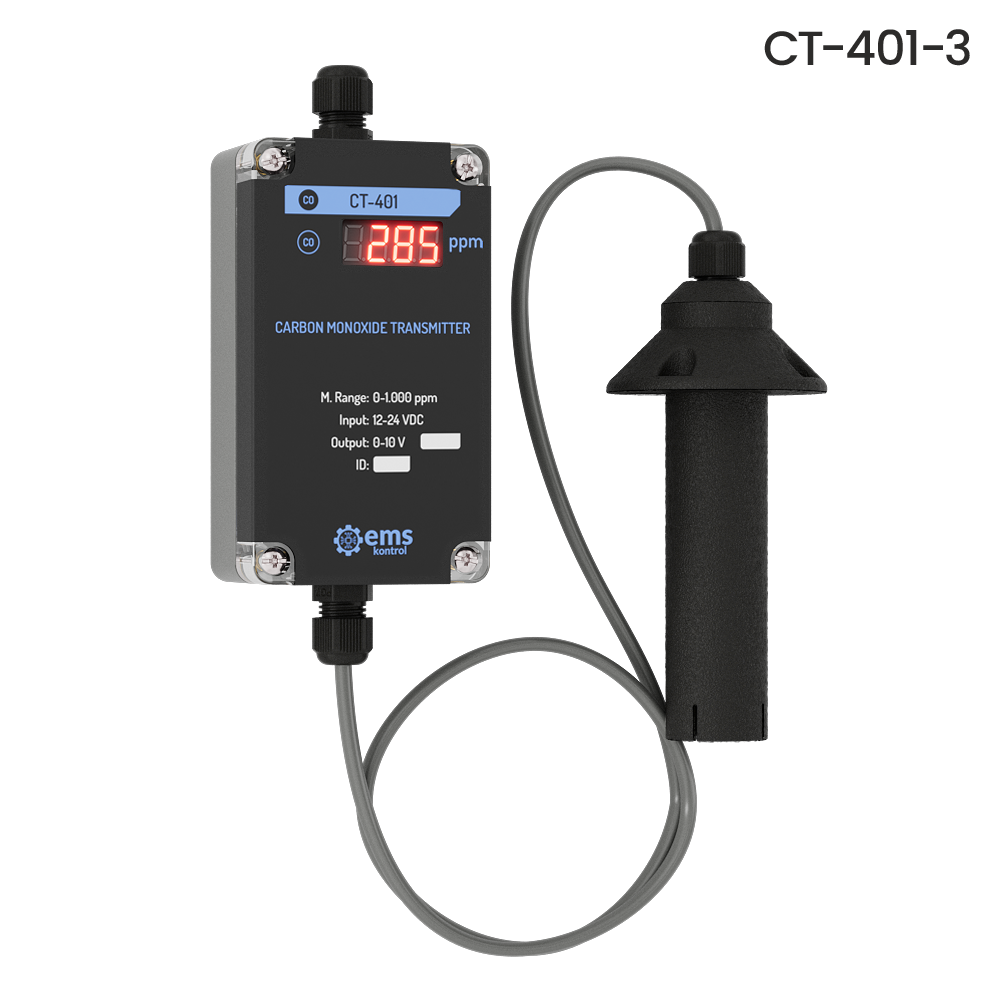

| 1m Wall Mounted | 1m Channel Mounted | ||||
| Dimensions | |||||
|---|---|---|---|---|---|
| A | B | C | a | b | c |
| 161 mm | 65 mm | 40 mm | 115 mm | 24 mm | 24 mm |
